Low power module connections

The Low power module is a digital output module and can be used to drive lower-powered electrical loads, such as lights, wipers, motors and other electronic devices.

Channel capabilities:

  • Up to 10A current draw per channel

  • Load current measurement

  • Over current protection

  • Under current detection

  • Soft fuse

  • Voltage detection

  • Voltage protection up to 32 V dc

Output options:

  • Resistive load

  • Inductive load (external fly-back diode required)

  • Incandescent lamp driver

  • PWM mode

  • Low load detection

Low power moduleOutputConnectionsLow powerOutput

Note

The Low power module requires a minimum current draw of 50mA. If your desired application requires loads of 200mA or less, then consider using the Input/Output channels on a Remote module or the Signal module, as they have been designed for this purpose.

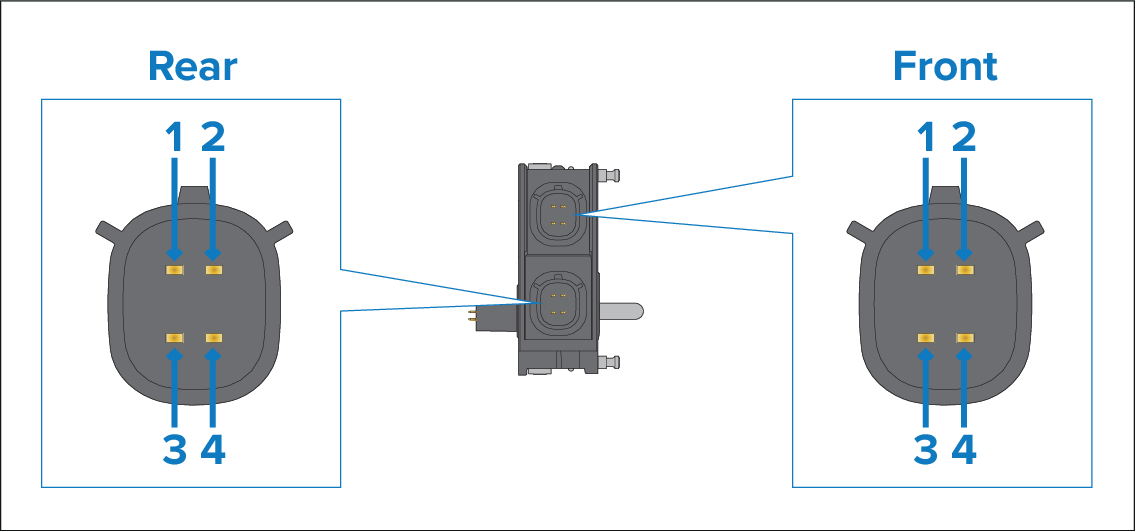

Rear connector

Front connector

1

CH3+

1

CH1+

2

CH4+

2

CH2+

3

CH3–

3

CH1–

4

CH4–

4

CH2–

ConnectionsLoads

Important

  • The negative power cable (0 V return) of the system must be connected to the same battery negative as all input and output devices that are being controlled or monitored by that system.

  • Each load must have both a supply and return connection to the module.

Example — Generic load connection

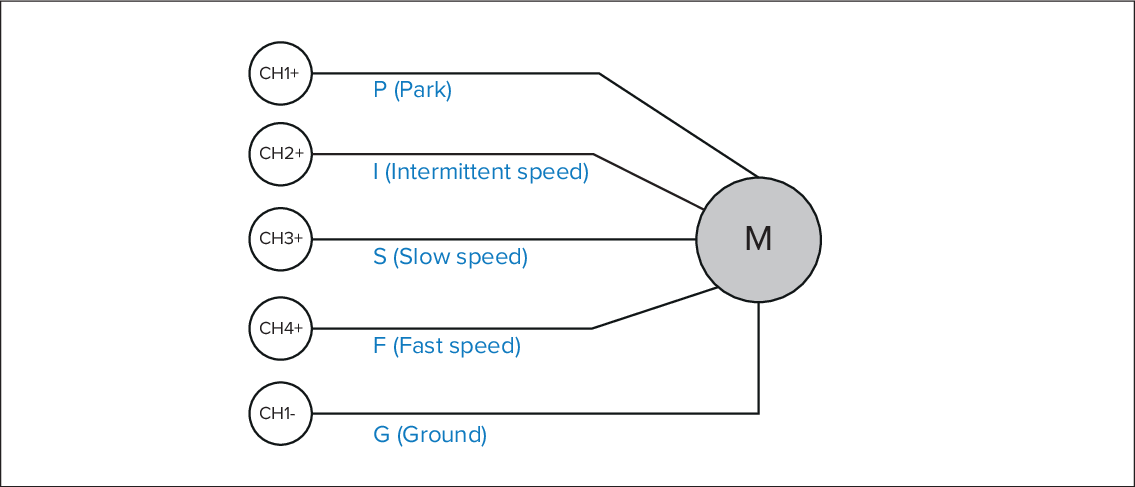

Example — Wiper motor connection

P — Park position

I — Intermittent speed

S — Slow speed

F — Fast speed

G — Ground
