LED diagnostics

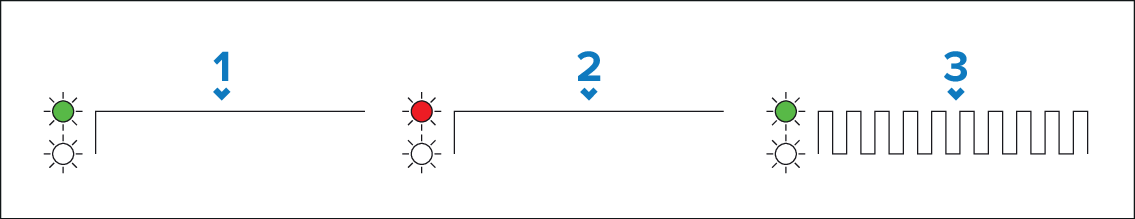

The status of each module can be determined by the LED color/flash sequence.

DiagnosticsLEDStatus

  1. Green on:

    • Master/Remote module — Configured correctly

    • Input/Output module — Channel on

  2. Red on:

    • Master/Remote module — Limp home mode active

    • Input/Output module — Channel tripped

  3. Green quick flash:

    • Software update in progress.
