Updating display software using a memory card

Follow the steps below to update the software on your display.

Software updates
  1. Check the product hardware variant and the software version of the products you want to update.
  2. Go to the Raymarine website: (www.raymarine.com > Support > Software Updates).
  3. Browse for your product.
  4. Check if an updated software version is available for your product.
  5. Download the relevant software package(s) (ISO files).
  6. Copy the files to MicroSD card.
  7. With your display powered on, insert the MicroSD card into the card reader slot.

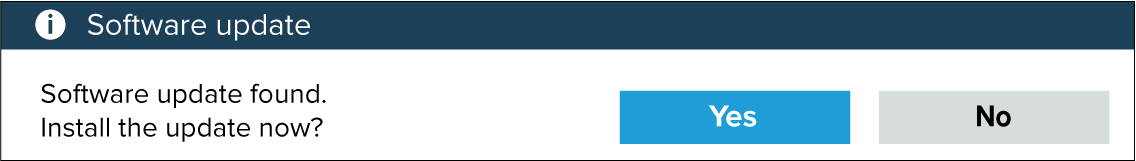

    The software update files will be recognized automatically.
  8. Select Yes to update the software.

    A list of available products is displayed. The list will include your display and products that are connected to the SeaTalkng® backbone.

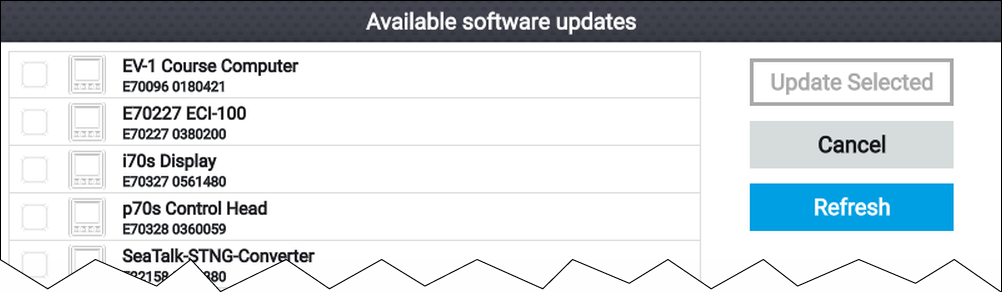

    Figure 1. Software update list example

  9. Select each device that you want to update.
    If a notification is displayed asking if you want to reinstall the current software version, unless you are experiencing problems with the product select No, otherwise select Yes and the current version of software will be reinstalled.
  10. When all relevant products have been chosen, select Update selected to commence the software update process.
  11. Wait for the update process to complete.
  12. Select Exit.
Note

  • Your products may reboot automatically as part of the update process.

  • You can also select Check SD card from the Update software pop-over options (Homescreen > Settings > Getting started > Update software.
