Identifying connected products

To display a list of products that are connected to the same SeaTalkng® backbone follow the steps below.

From the Homescreen:
  1. Select Settings.
  2. Select the This display tab.
  3. Select Networked devicesNetworked devices.

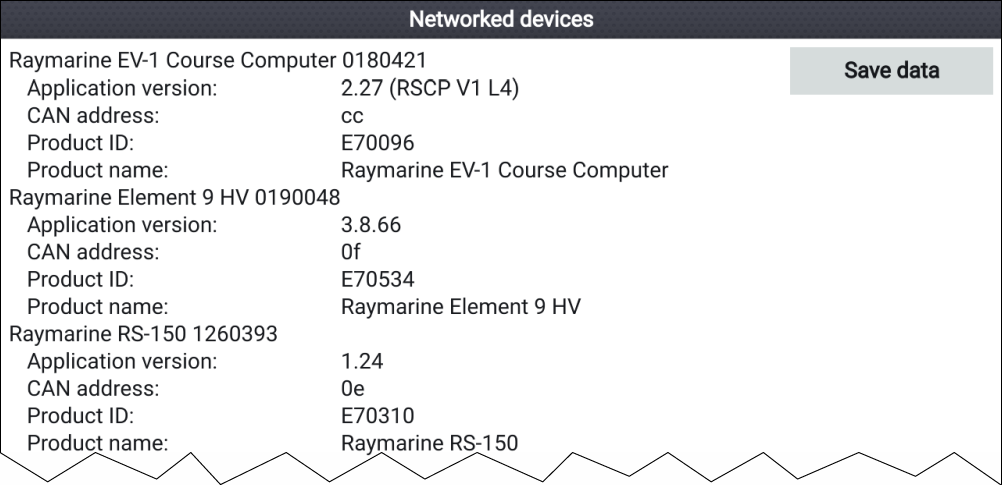

    Product information for compatible products is displayed. The software version can be located against Application version:.

  4. If required, use the Up and Down buttons to scroll through the list of product information.
  5. You can also save the list of product information to memory card by selecting Save data.
    The product information file will be saved in .json file format that can be viewed using most standard notepad applications.
