Opening the Fishfinder app

Select an app page icon from the homescreen that includes the Fishfinder app.

Pre-requisites:

1. Ensure your transducer is compatible (check the latest details available on the Raymarine website). If in doubt please contact an authorized Raymarine dealer for advice.

2. Ensure you have installed and connected your transducer in accordance with its supplied documentation.

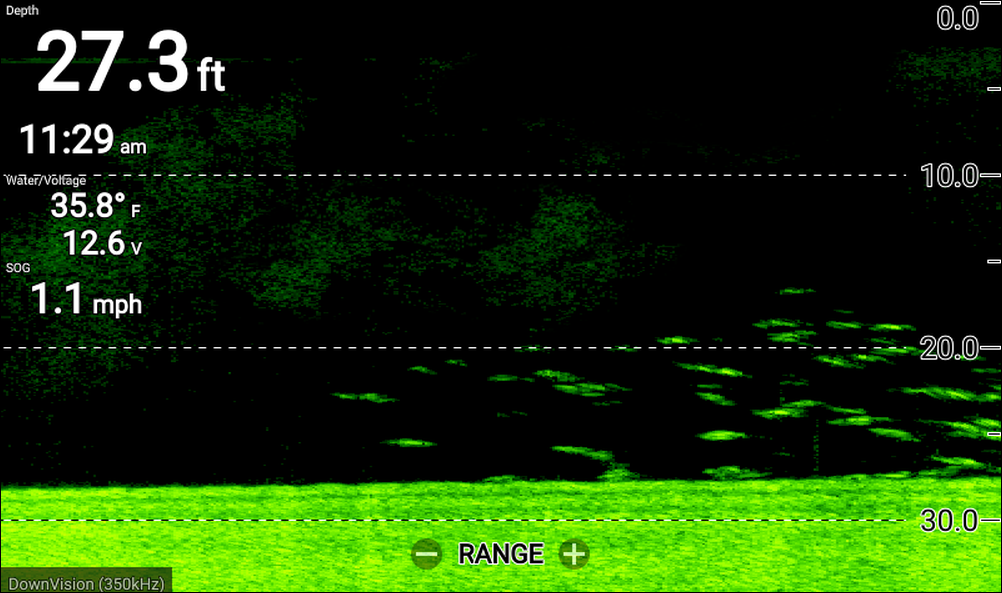

When opened the Fishfinder app will scroll across the screen, displaying target returns of objects and bottom structure that has passed under your transducer.

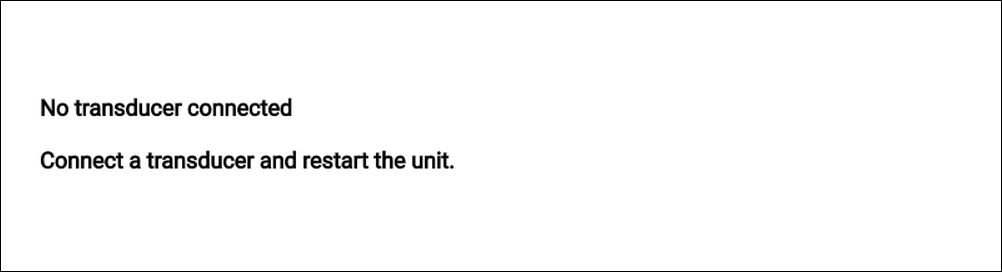

FishfinderNo transducerIf the ‘No transducer connected’ warning is displayed then your transducer has not been detected.

Check your transducer connection(s) are correct and free from damage, then power cycle your display. If the transducer is still not found then refer to your transducer’s installation documentation for further troubleshooting information.
