Fishfinder channels — Element HV displays

The following fishfinder channels are available on Element™ HV displays, depending on the type of transducer connected.

FishfinderChannels

Channel icon

Channel type

Required transducer

RealVision™ 3D channel (350 kHz / 1.2 MHz)

Provides a scrolling 3D view of the water behind and to the sides of your vessel.

HyperVision™ transducer.

For a list of compatible transducers, refer to:

HyperVision transducers

SideVision™ channel (350 kHz / 1.2 MHz)

Provides a photo-like scrolling 2D view of the water on each side of your vessel.

HyperVision™ transducer.

For a list of compatible transducers, refer to:

HyperVision transducers

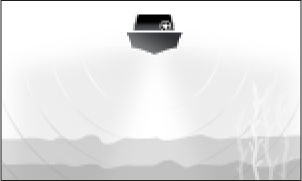

DownVision™ channel (350 kHz / 1.2 MHz)

Provides a photo-like scrolling 2D view of the water beneath and to the sides of your vessel.

HyperVision™ or DownVision™ transducer.

For a list of compatible transducers, refer to:

Compatible transducers - Element HV displays

Sonar channel (Conical high CHIRP (200 kHz))

Provides a traditional scrolling 2D view of the water beneath your vessel.

Compatible CHIRP transducer.

For a list of compatible transducers, refer to:

High CHIRP sonar transducers
Note

The HyperVision™ transducers available for HV variant displays each utilize a number of different sonar technologies; all are combined into a single HyperVision™ transducer:

  • RealVision™ 3D

  • SideVision™

  • DownVision™

  • CHIRP
