Configuring Wi-Fi credentials for mobile device connections

Mobile devices can be connected to the display using a Wi-Fi connection. Connecting your mobile device to the display enables the use of Raymarine apps e.g.: RayConnect. The credentials for your display’s Wi-Fi connection can be identified and configured from the Wi-Fi settings tab.

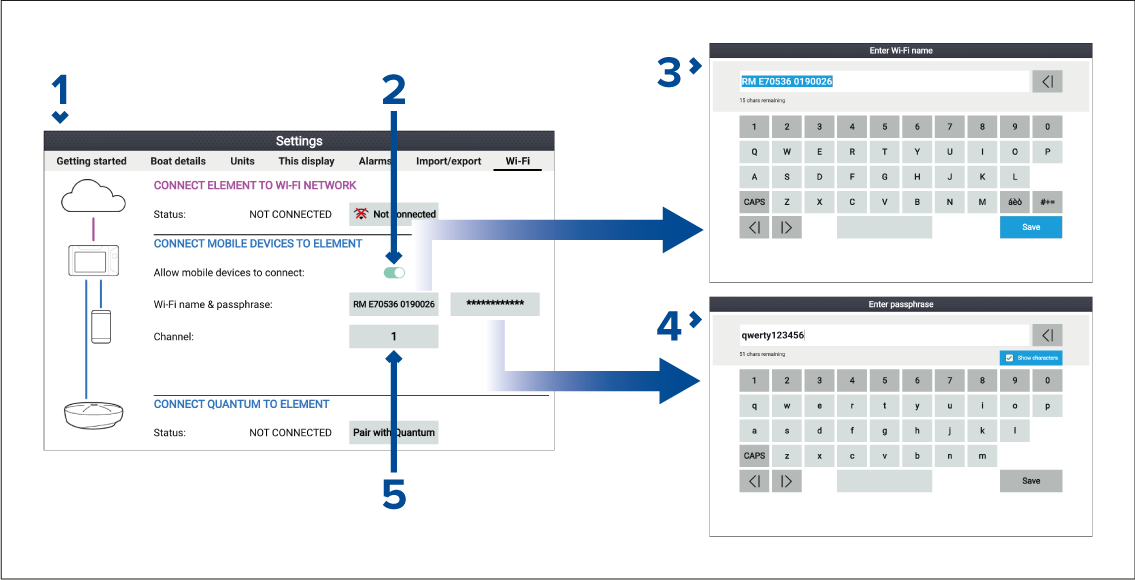

Wi-Fi credentials

  1. Wi-Fi settingsThe Wi-Fi settings tab is accessed from the Settings menu: (Homescreen > Settings > Wi-Fi > CONNECT MOBILE DEVICES TO ELEMENT).

  2. Mobile deviceTo enable a mobile device to connect to the display Allow mobile devices to connect must be enabled

  3. Wi-Fi nameThe display’s Wi-Fi network name can be viewed from the Wi-Fi settings tab and can be changed by selecting the name field.

  4. Wi-Fi passphraseThe display’s Wi-Fi network passphrase can be viewed by selecting the passphrase field and then selecting Show characters on the Enter passphrase page. The passphrase can also be changed from the same page.

  5. Wi-Fi channel The display’s Wi-Fi network channel can be viewed from the Wi-Fi settings tab and can be changed by selecting the channel field.
