Connecting an Android device to the display

Android devices can be connected to the display’s Wi-Fi connection.

Open your Android device’s Wi-Fi settings from the top drop down menu or via the Settings icon.

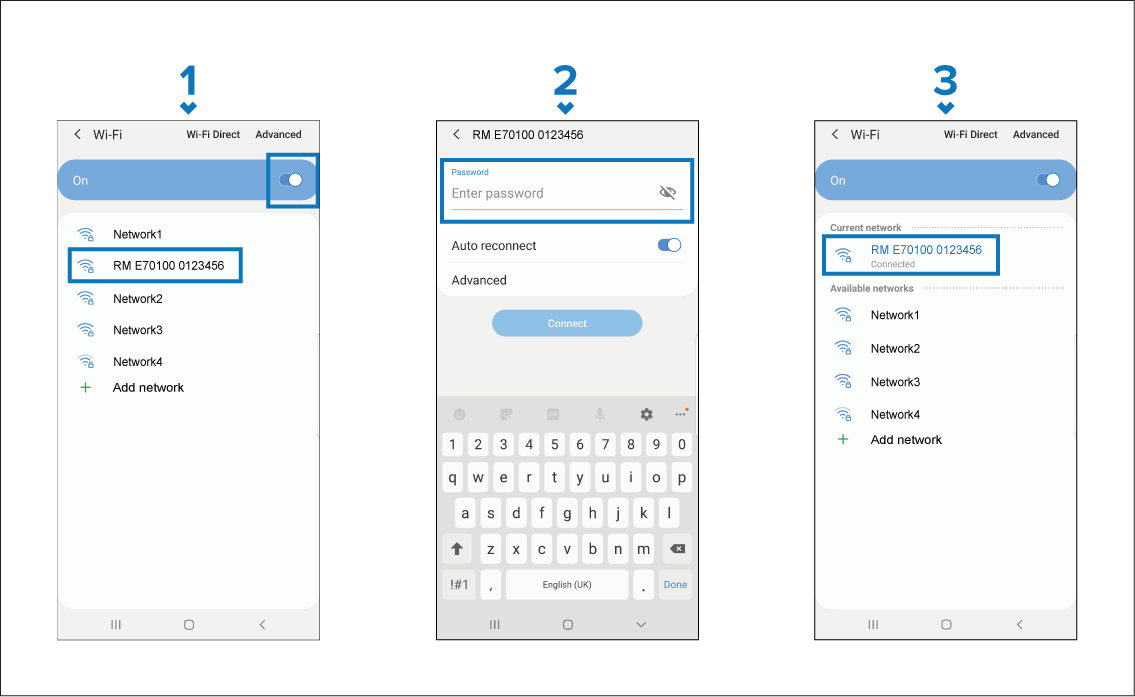

Figure 1. Example Android Wi-Fi connection

Note

Depending on device type, manufacturer and version of the Android operating system in use, screens and options may be different than in the example above.

  1. Enable Wi-Fi by setting the toggle to on (blue) and select your MFD from the available networks.
  2. Enter your MFD’s Wi-Fi passphrase and select Connect.

    Make sure the password you enter is case sensitive.

  3. Once your Android device is connected to your MFD’s Wi-Fi network, it will display “Connected” under the MFD’s device name.

For troubleshooting advice, refer to the Wi-Fi troubleshooting information in the Troubleshooting chapter.
