Chart app overview
The Chart app displays a representation of your vessel in relation to land masses and other charted objects, which enables you to plan and navigate to your desired destination. The Chart app requires a GNSS (GPS) position fix in order to display your vessel at the correct location on a world map.
Chart appOverviewFor each instance of the Chart app you can select which electronic cartography you want to use. The selection will persist over a power cycle.

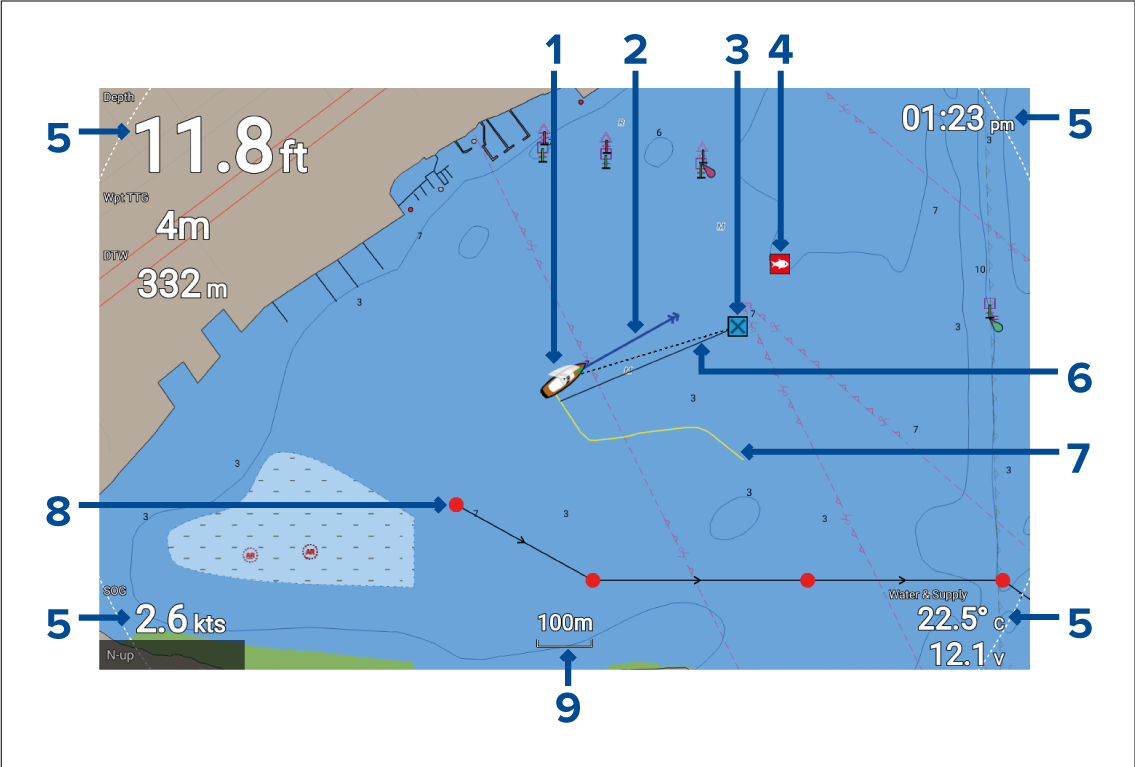

1 |
Vessel iconVessel icon This icon represents your vessel, only displayed when a GNSS (GPS) position fix is available. The icon is replaced with a Black dot if no heading or COG data is available). |
2 |
COG lineCOG line If Course Over Ground (COG) data is available, you can display a COG vector for your vessel. |
3 |
Destination waypointDestination waypoint During a go to, this is the current destination waypoint. |
4 |
WaypointWaypoint Use waypoints to mark specific locations or points of interest. |
5 |
DataboxesDataboxes Databoxes display key information that is available on your system. You can configure which data is shown in each databox or the databoxes can be hidden. |
6 |
Destination lineDestination line During a go to, a dashed line connects your vessel to the destination point. |
7 |
TrackTrack You can record the passage your vessel takes using Tracks. |
8 |
RouteRoute You can plan your route in advance by creating a Route using waypoints to mark each route leg. |
9 |
Chart rangeChart range Identifies the scale for the displayed chart range. |
