RealVision™ 3D overview

RealVision™ 3D and RealVision™ Max 3D transducers produce life-like 3D sonar imagery. When using a RealVision™ 3D or RealVision™ Max 3D transducer, the 3D Vision channel will be available in the Fishfinder app. RealVision™ 3D and RealVision™ Max 3D transducers are also capable of producing DownVision™, SideVision™, and CHIRP conical sonar channels.

CHIRPRealVision™ 3D 3D Vision

3D Vision provides a true, easy-to-understand view of bottom topography, debris, and fish.

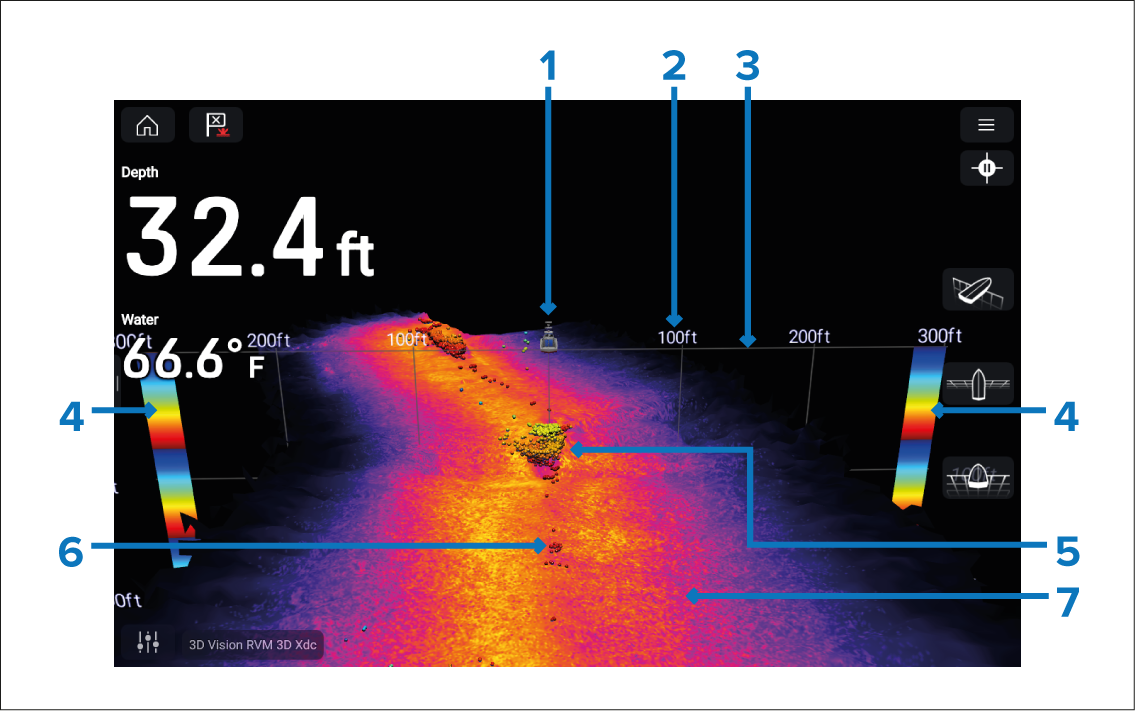

Figure 1. 3D Vision screen interpretation

  1. Vessel location — The vessel icon indicates the location and direction of your vessel.

  2. Range scale — The range scale indicates distance (range) to port and starboard from your vessel.

  3. Water line — This line represents the top of the water column.

  4. Depth indicator — Provides an indication of object depths.

  5. Structure — Example of bottom structure, including underwater structures such as pipelines, piers, and other large solid structures.

  6. Sonar returns — Sonar return / detected object.

  7. Bottom — Solid mass indicating the bottom. It may be possible to identify the transition of bottom material (e.g.: where an area of mud meets an area of gravel).
