Drilling out the mounting holes

Before panel mounting the Radio the mounting holes must be drilled out.

MountingProduct holesDrilling Product holes

Guides for the mounting holes can be found in the corners of the unit, under the front bezel.

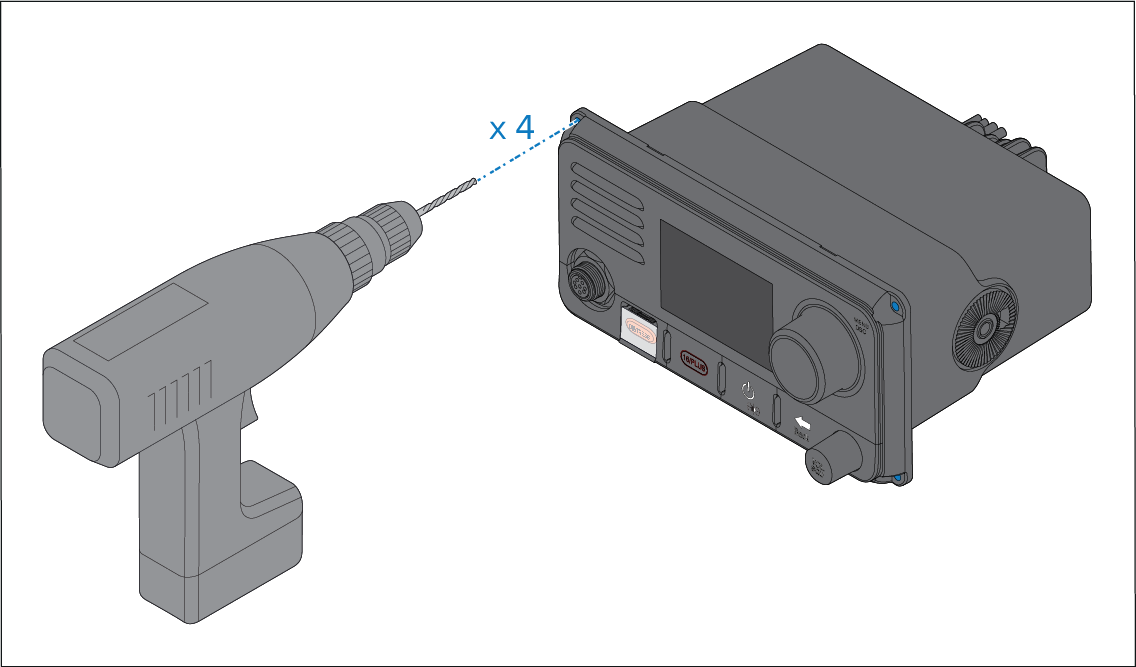

Using a drill and a 4 mm (5/32) drill bit, drill out the 4 mounting holes.

Holes should be drilled from the front of the unit, taking care not to damage the unit by applying too much force to the drill.
