Connecting a VHF antenna

The radio must be connected to a suitable VHF antenna (not supplied). The antenna connection must be protected so it cannot come into contact with any bare metal (which may be grounded). A protective boot is supplied that can be used to ensure isolation of the antenna connection.

ConnectionsVHF antenna

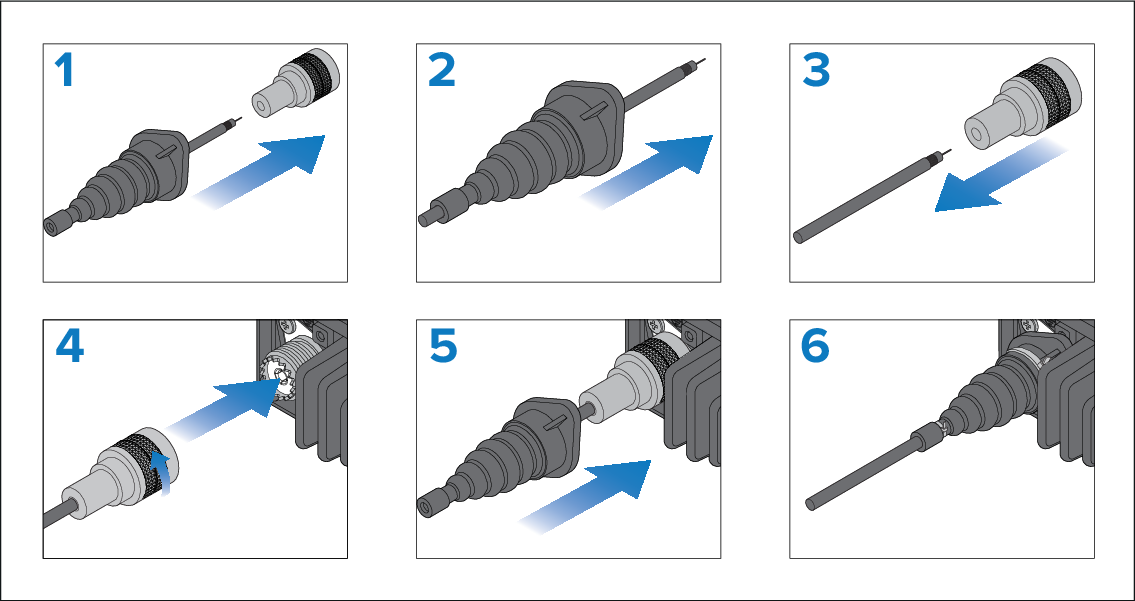

  1. Disconnect your antenna cable from the connector.
  2. Push the antenna cable through the supplied protective boot.
  3. Re-connect the antenna cable to the connector.
  4. Plug the antenna connector into the product’s antenna connection and secure by tightening the locking collar.
  5. Push the protective boot over the connection.
  6. Secure the protective boot using the supplied cable ties.

If the antenna connector cannot be removed then another suitable means of protection must be used, such as insulation tape.
