Attaching the front bezel

After installation of the Radio the front bezel can be attached following the steps below.

Front bezelAttaching

The following procedure assumes that the unit has already been mounted in position.

  1. Orientate the bottom-right side of the bezel under the bottom-right side of the unit, ensuring that the clips along the bottom edge of the bezel latch into position.

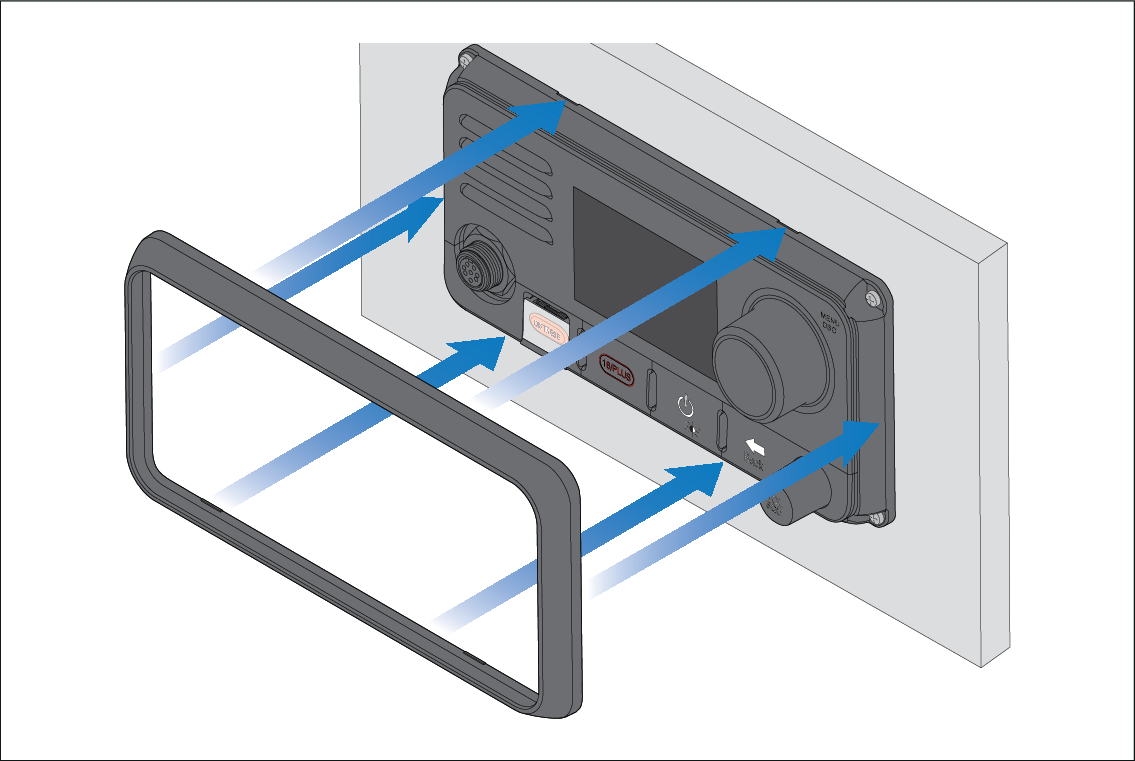

  2. Ensure the bezel is correctly aligned with the unit, as shown.
  3. Apply firm but even pressure to the bezel along the:
    1. Outer edges - work from the sides upwards and then along the top edge, to ensure that it clips securely into position.
    2. Inner edges - ensure that the bezel sits flat.
  4. Check that all control buttons are free to operate.
