Handset station connection

A Wired handset can be connected to each Handset station connection (HS 1 / HS 2). Your radio is supplied with the equipment to create a full handset station (i.e.: Wired handset, Adaptor cable and Passive speaker). Additional accessories can be purchased to create a second wired handset station.

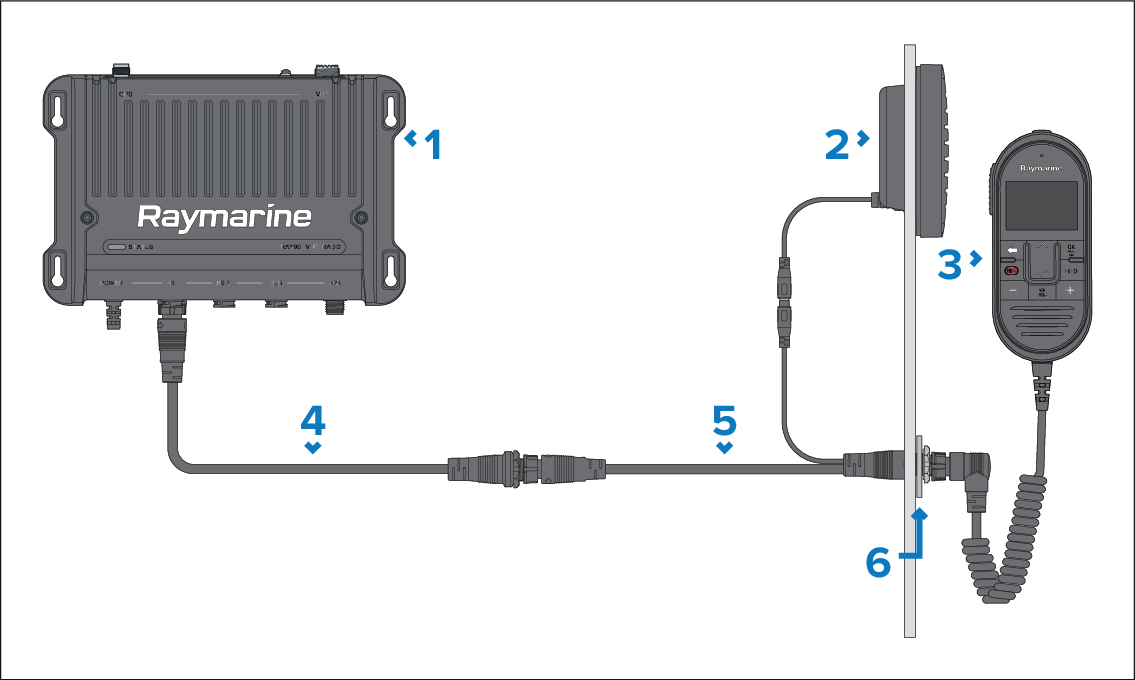

ConnectionsRaymic handset

  1. Base station.

  2. Passive speaker (1 x supplied and available as accessory: A80542).

  3. Wired handset (1 x supplied and available as accessory: A80289).

  4. Wired handset extension cable, available in different lengths as optional accessories:

    • A80291 — 5 m (16.4 ft).

    • A80292 — 10 m (32.8 ft).

    • A80290 — 15 m (49.2 ft).

  5. Handset station adaptor cable with RCA Audio 400 mm (1.3 ft) (1 x supplied and available as accessory: A80297).

  6. Panel mount fixings kit (1 x supplied and available as a Spare: R70438).
