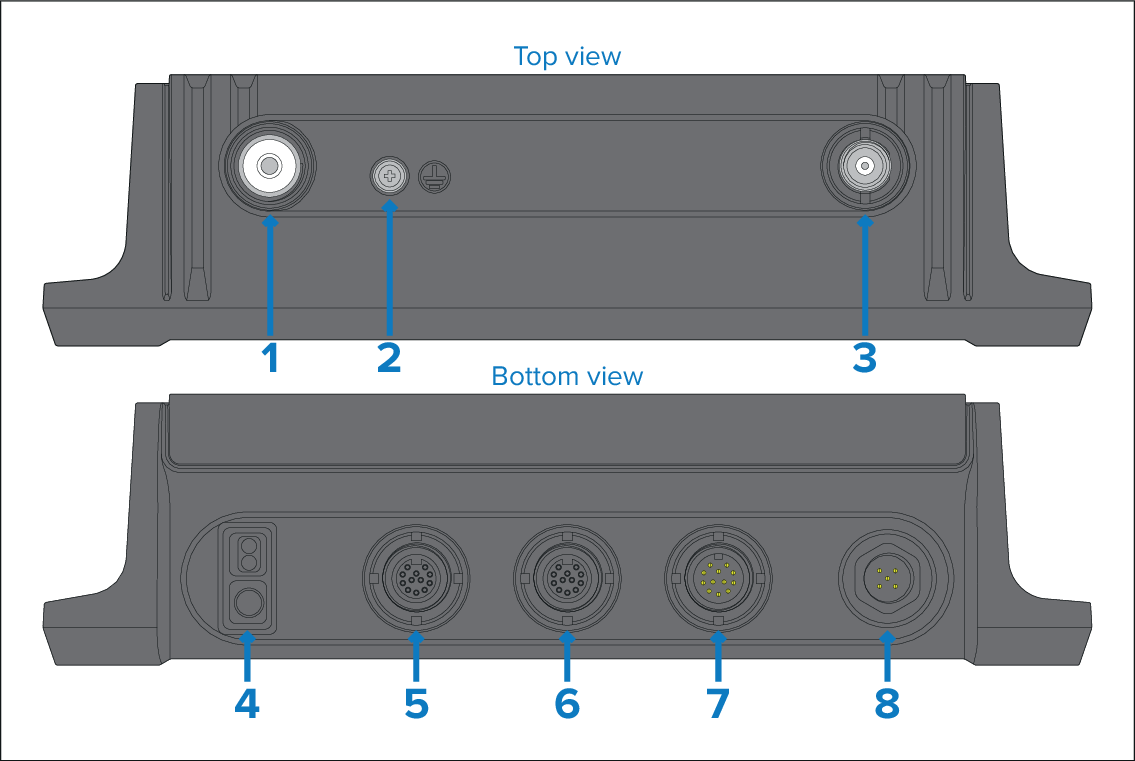

Connections overview

1

GNSS (GPS) antenna connection

Passive GNSS antenna

GNSS antenna’s fitted cable.

2

Earth stud

DO NOT CONNECT

N/A

3

VHF antenna connection

VHF antenna or Splitter

VHF antenna’s fitted cable.

4

Power and data connection

• 12 V dc power supply

• NMEA 0183 devices

• Loud Hailer

• Suitable power extension or circuit breaker.

• Cable supplied with your NMEA 0183 device

• Loud hailer’s fitted cable

5

HS 1 (Handset station 1) connection

Wired handset or Adaptor cable

Wired handset’s fitted cable.

6

HS 2 (Handset station 2) connection

Wired handset or Adaptor cable

Wired handset’s fitted cable.

7

Hub connection

Wireless hub connection

Wireless hub’s fitted cable.

8

NMEA 2000 connection

SeaTalk NG / NMEA 2000 backbone

The supplied DeviceNet to SeaTalk NG adaptor or a DeviceNet spur cable.
