Single-camera system with a digital video (HDMI) monitor and JCU
For this system, a device running a Web browser is not required. The camera’s video feed is routed through the camera’s HD-SDI video connector via a third-party HD-SDI to HDMI video converter (not supplied) to a digital video monitor. Camera control is provided by a JCU (available separately).
It is recommended that an HD video isolation transformer is fitted to camera HD-SDI connections. Failure to install an inline HD video isolation transformer may invalidate the camera’s warranty. For more information, refer to:

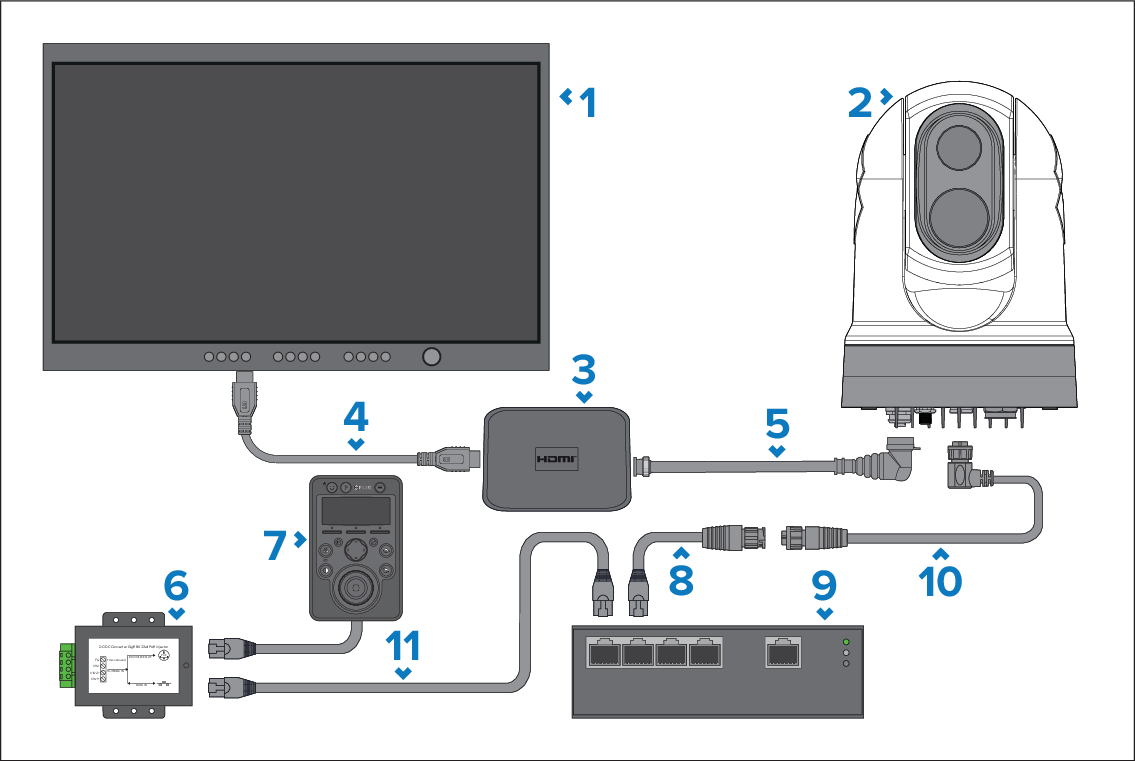

Description |
|
|---|---|
1 |
Digital video (HDMI) monitor, available separately from third-party retailers |
2 |
M300-Series camera |
3 |
HD-SDI to HDMI video converter, available separately from third-party retailers |
4 |
HDMI video cable, available separately from third-party retailers |
5 |
HD-SDI video cable (BNC connectors) (3 m / 9.8 ft.), 1x supplied with camera |
6 |
PSE (Power Sourcing Equipment — e.g. a PoE Injector or PoE network switch) providing PoE (Power over Ethernet) to the JCU-4, available separately |
7 |
Joystick Control Unit (JCU-4 currently illustrated), available separately |
8 |
RayNet (Ethernet) to RJ45 adapter cable (100 mm (3.9 in)), 1x supplied with camera |
9 |
Ethernet network switch, available separately |
10 |
Right angled RayNet (Ethernet) to RayNet (Ethernet) cable (3 m (9.8 ft.)), 1x supplied with camera |
11 |
RJ45 to RJ45 Ethernet cable, available separately |
