HD-SDI isolation transformer
When connecting the camera via HD-SDI, to prevent potential grounding issues, an HD video isolation transformer should be fitted to the HD-SDI cable within 1 m (3.28 ft) of the display or video converter, ensuring that the camera is connected to the end of the isolation transformer labelled input.
A suitable isolation transformer is available as an optional accessory, part number: 4142057.
Failure to install an inline HD video isolation transformer following this guideline may invalidate the camera’s warranty.
The HD-SDI video cable connected between the HD video isolation transformer and your digital video (HD-SDI) monitor or video converter must be maximum 1 m (3.28 ft) in length.

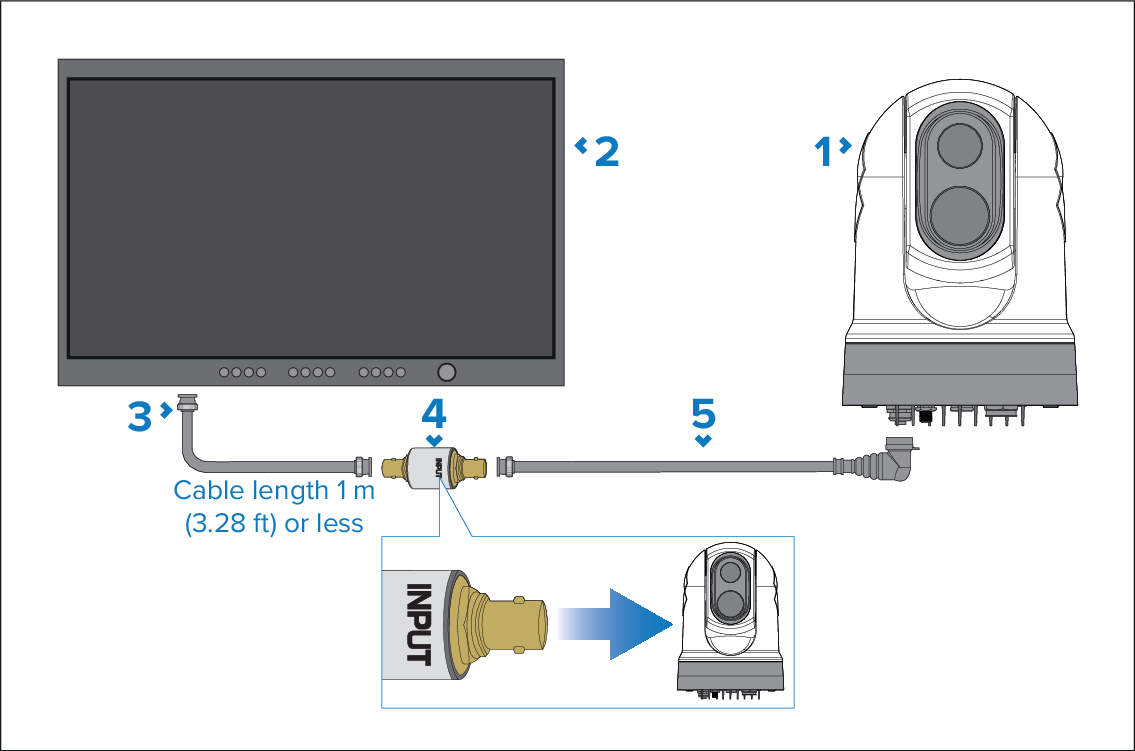

Description |
|
|---|---|
1 |
M300 Series camera. |
2 |
Digital video (HD-SDI) monitor, available separately from third-party retailers. |
3 |
HD-SDI video cable (BNC connectors) (1 m / 3.28 ft or less), available separately from third-party retailers — connected to the digital video (HD-SDI) monitor. |
4 |
HD video isolation transformer, available separately (part number: 4142057). |
5 |
HD-SDI video cable (BNC connectors) (3 m / 9.8 ft.), supplied with camera — connected to the M300 Series camera. |
If you wish to extend the length of a video cable connected to your product, refer to:
