M300-Series (single payload)

The M300-Series single payload variant is a maritime camera equipped with either a visible-light or thermal imaging system (depending on chosen model), for use on nearly any kind of vessel.

The camera will have one of the following types of imaging core, depending on the chosen model:

  • Visible-light — provides a clear color image in daylight conditions. For example, a visible-light camera can help you maintain a watch of your surroundings, or zoom in on distant objects.

  • Thermal — provides a clear image in faint and no-light conditions. For example, a thermal camera can help you navigate at night or identify obstacles in areas of low visibility, or even total darkness.

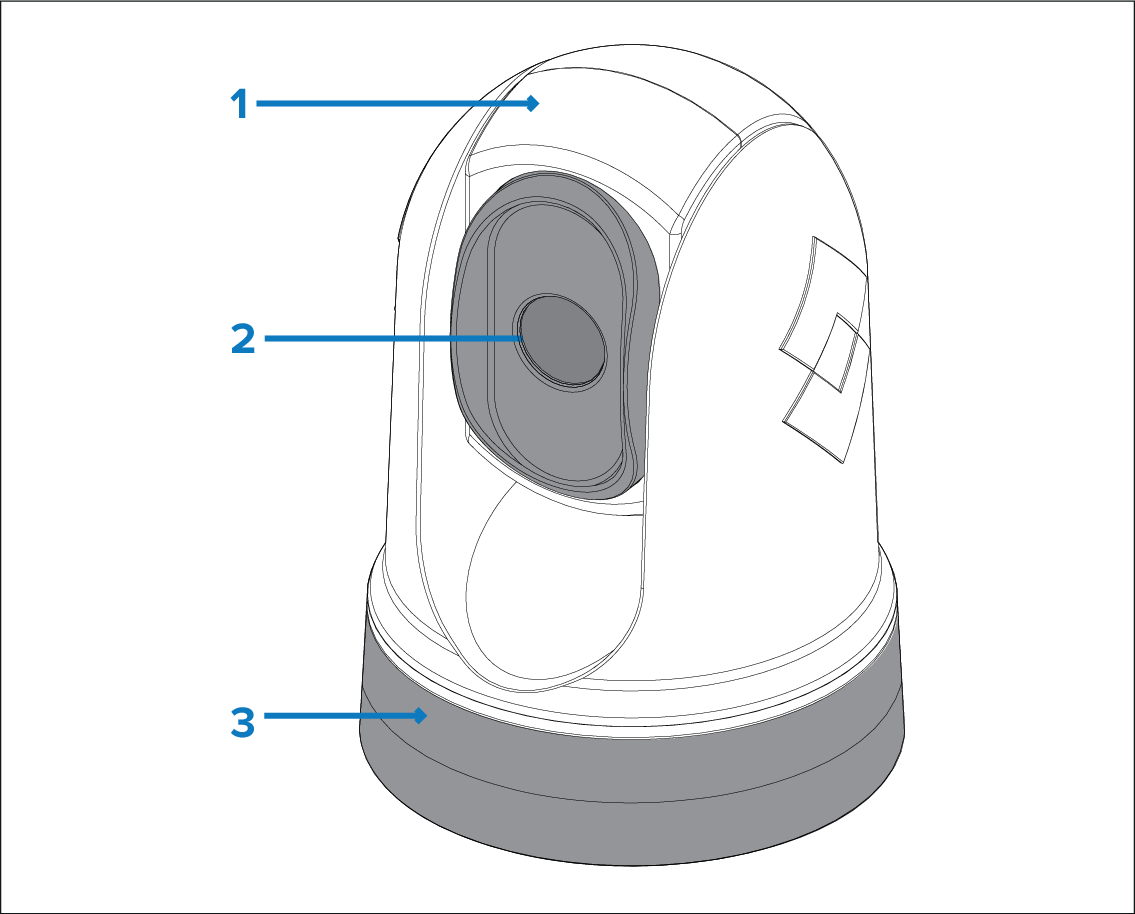

Product overviewProduct overviewSingle payload

  1. Tilt assembly.

  2. Camera lens window.

  3. Pan assembly.

The M300-Series system has the following key functions and features:

  • IP connectivity to simplify installation and system integration.

  • 4 simultaneous video outputs, including 2 visible-light or 2 thermal digital streams (depending on your chosen model). For further information, refer to the following section: Video connections

  • Pan and tilt operations via dedicated Joystick Control Unit (JCU), multifunction display (MFD) / chartplotter, or Web browser.

  • 2-axis mechanical camera stabilization to suit changing conditions.

  • Preset modes (Scenes) optimized for prevailing conditions.

  • Marine Video Analytics (MVA) — intelligent thermal analytics technology; provides visual alerts when “non-water” objects are identified in the scene. This feature can be enabled using the camera’s Web interface or the on-screen display via a connected JCU.

  • Automatic window heaters to de-ice the lens window in cold weather.

  • 12 V or 24 V dc power.
