Thermal camera status icons

The thermal camera image includes icons to show the current status of the camera.

Note

Icons are colored red if the WhiteHot or BlackHot palette is in use, and colored white for all other palettes.

Icon Status icons	Description
	Camera direction indicator The segment inside the circle indicates which direction the camera is pointing with respect to the vessel (azimuth). The scale and marker on the right indicates the camera’s tilt angle (elevation). M200-Series only.
	Home position Displayed momentarily when you command the camera to move to its home position. Flashes three times when you set the camera’s home position.
	Park indicator Displayed when the camera is parked.

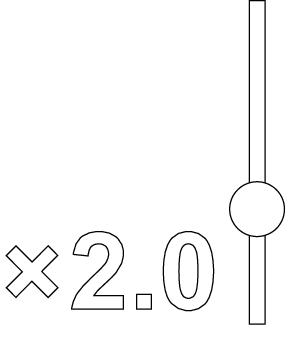

	Zoom indicator Displayed whenever the thermal image is zoomed-in (magnified). The figure indicates the amount of magnification (up to x4.0).
	Motor stalled Displayed instead of the Camera direction indicator when the camera motor is stalled. Note If this icon is displayed, check that the camera’s movement is not being physically obstructed.
