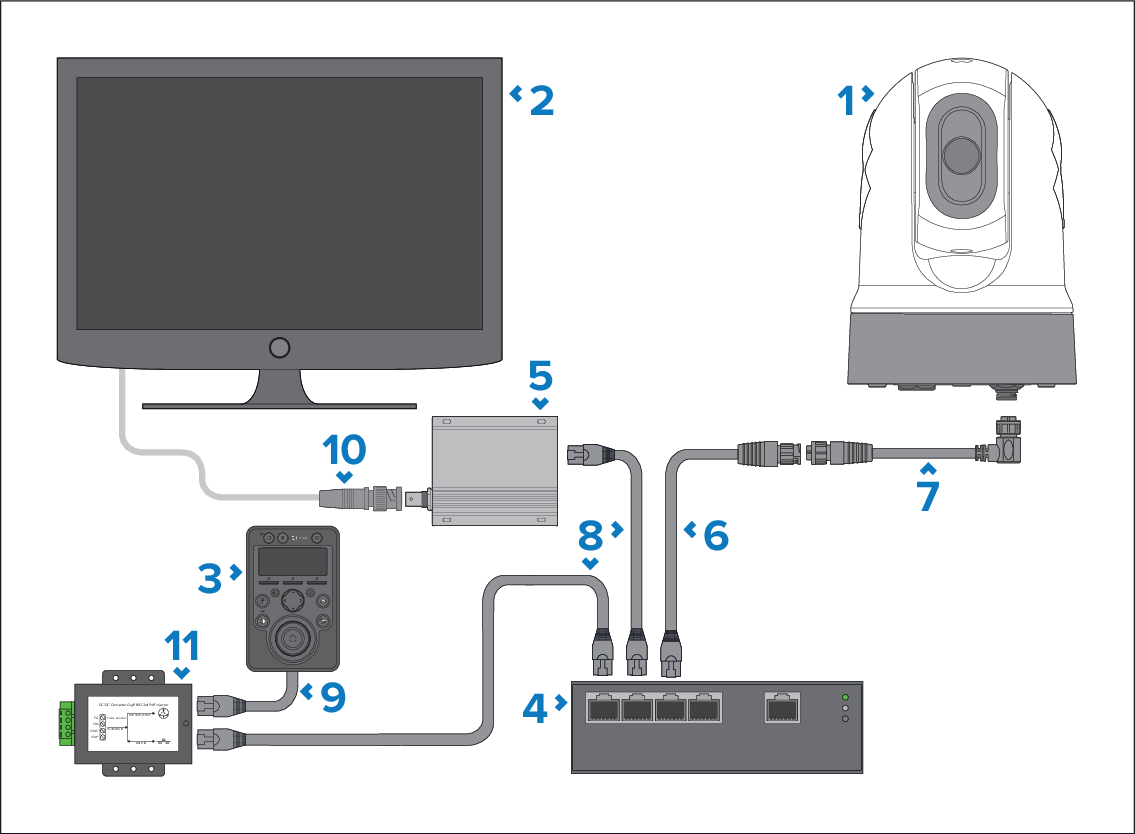

Single-camera system with analog video monitor and JCU
For this system, a device running a web browser is not required. The camera’s IP video feed is routed through an Ethernet network switch to an IP video decoder (available separately from third-party retailers), and displayed on an analog video monitor. Camera control is provided by a JCU (available separately).
Description |
|
|---|---|
1 |
Camera |
2 |
Analog video monitor, available separately from third-party retailers |
3 |
Joystick Control Unit (JCU-4 currently illustrated), available separately |
4 |
Ethernet network switch, available separately |
5 |
IP video decoder, available separately from third-party retailers |
6 |
RayNet (Ethernet) to RJ45 adapter cable (100 mm, 3.94 in), 1x supplied with camera |
7 |
Right-angled RayNet (Ethernet) to RayNet (Ethernet) cable, 10 m (32.8 ft), 1x supplied with camera |
8 |
RJ45 to RJ45 Ethernet cable |
9 |
RayNet (Ethernet) to RJ45 cable, available separately |
10 |
BNC to BNC video cable, available separately |
11 |
PoE injector (provides power to JCU-4), available separately |
