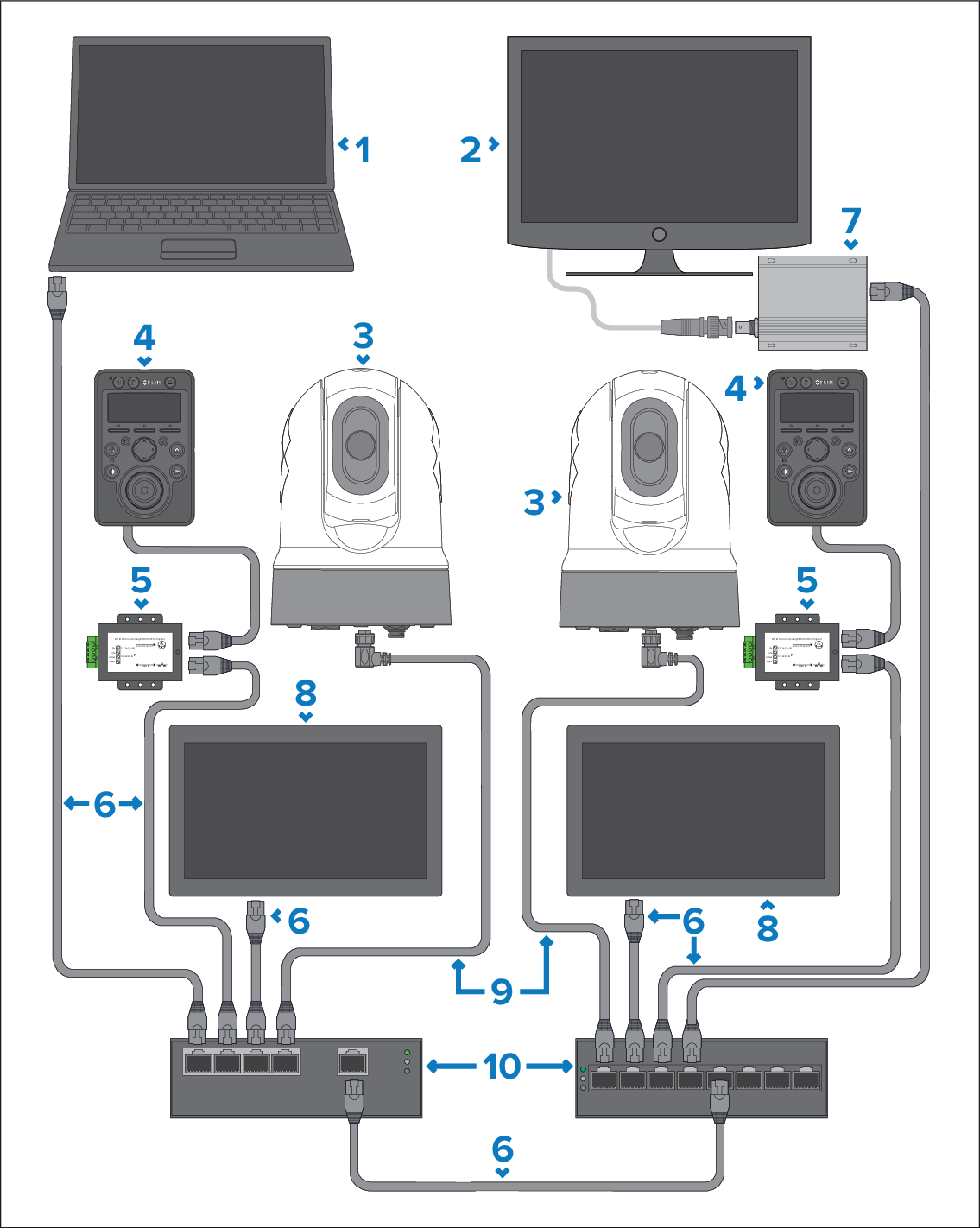

Multi-camera system with a video monitor, 2 compatible MFDs / chartplotters, 2 JCUs, and a web browser
Description |
|
|---|---|
1 |
Laptop (or another Ethernet-connected device running a Web browser), available separately from third-party retailers |
2 |
Analog video monitor, available separately from third-party retailers |
3 |
Camera |
4 |
Joystick Control Unit (JCU-4 currently illustrated), available separately |
5 |
PSE (Power Sourcing Equipment — e.g. a PoE Injector or PoE network switch) providing PoE (Power over Ethernet) to the JCU-4, available separately |
6 |
RJ45 to RJ45 Ethernet cable, available separately |
7 |
IP video converter, available separately from third-party retailers |
8 |
Compatible MFD / chartplotter, available separately |
9 |
Right-angled RayNet (Ethernet) to RJ45 cable, available separately |
10 |
Ethernet network switch, available separately |
