Logging in to the Web browser user interface

You can log in to the camera’s Web interface using one of three User Names: user, expert, or admin.

  • The user login can access the Live Video page and control the camera.

  • The expert login can access the Setup menus and make configuration changes to the payloads and other components.

  • The admin login can access the Maintenance menu and all the other menus as well as change the login passwords required.

If your product was:

  • Originally obtained running a software version earlier than v2.09-45:

You can log in to the Web interface using the User Name user and Password user, the User Name expert and Password expert, or the User Name admin and Password fliradmin.

If your product was:

  • Originally obtained running software version v2.09-45 or later:

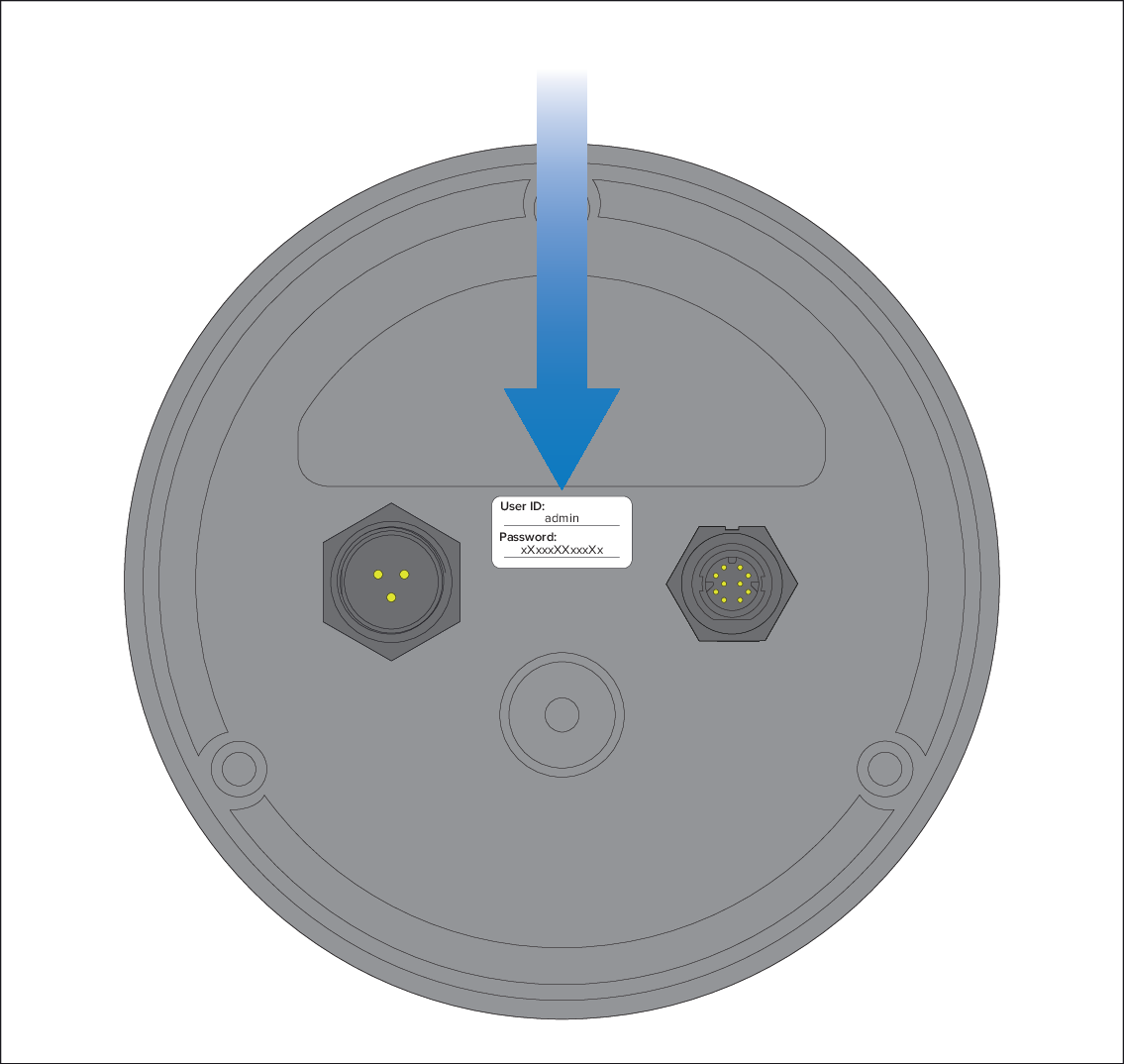

You can log in to the Web interface using the User Name admin and the unique Password located on the serial number label supplied in the box and / or on the underside of your product:

Once you have logged in using the admin User Name and the unique password, you can then set a password which will be used to log in to the user and expert User Name logins, by navigating to: Maintenance > Security Options.

Note

  • You should change the default login passwords to prevent unauthorized log in.

  • Only two web sessions can be active at once.

To log in:

  1. Go to the camera’s web page by:

    • Entering the camera’s IP address directly into the address bar of your web browser, OR

    • Double-clicking the camera in “My Network Places” (Windows XP) or “Network” (later versions of Windows).

    For more information, refer to the following section: Camera IP address discovery

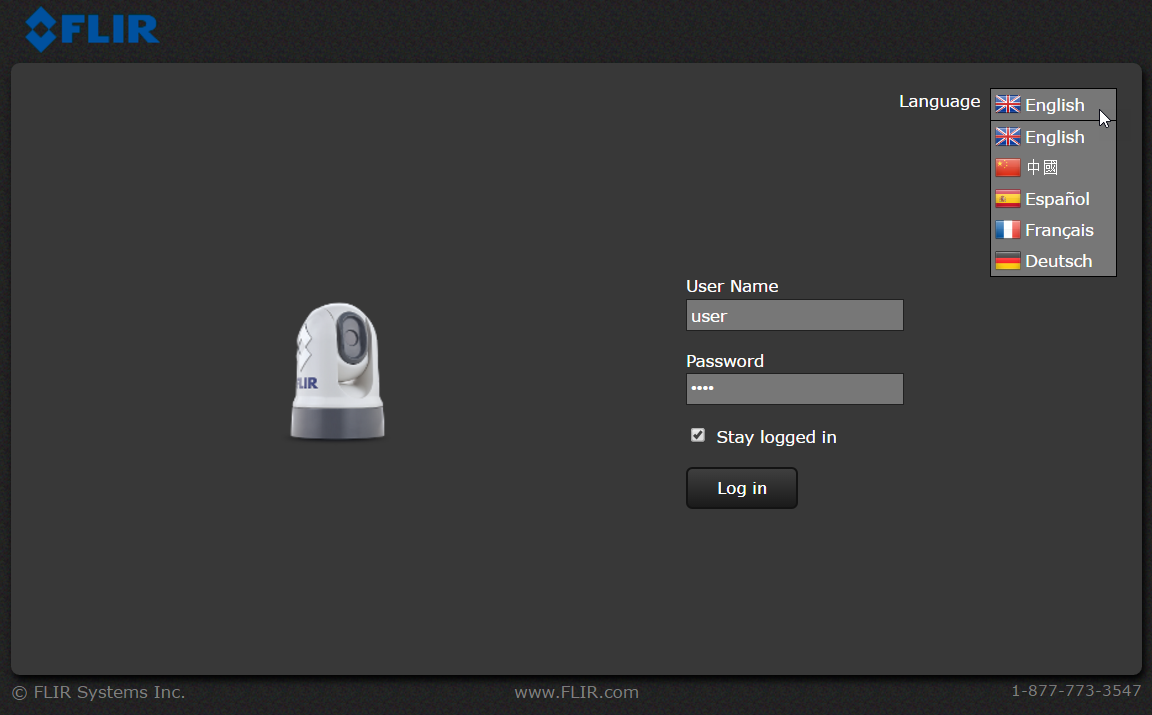

    The login screen with a picture of the camera is displayed.

  2. Select a different language if desired.
  3. Enter the applicable login information referenced above, then click Log in.

    The Live Video page is displayed.
