Tools required (surface mount installations)

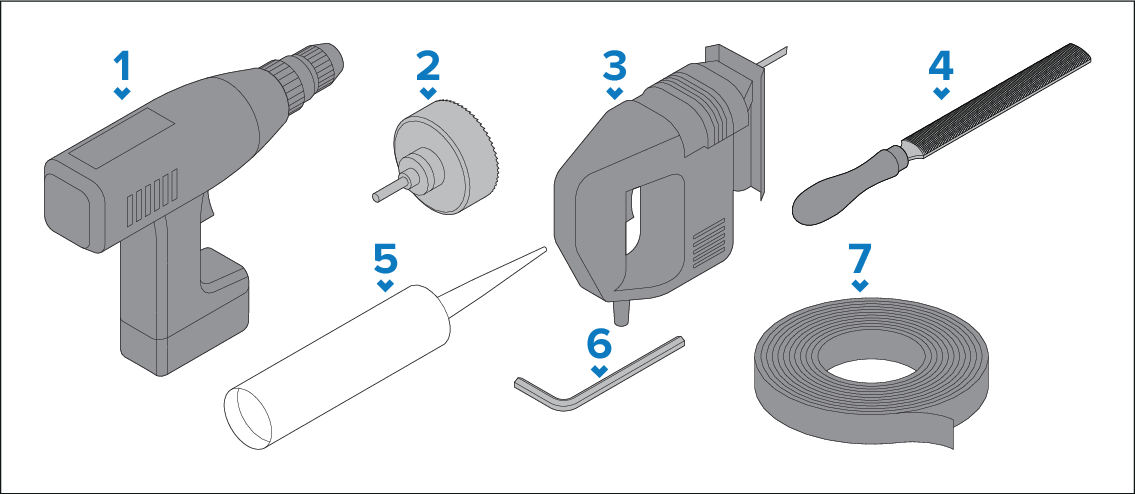

The following tools are recommended for surface mount installations:

InstallationSurface mountingTools requiredMountingSurface mountingTools requiredTools required Surface mounting

  1. Power drill.

  2. Hole cutter (appropriate size for corner diameters of the Cut-out line identified on the supplied mounting template):

    • 20.00 mm (0.79 in) — 7” and 12” displays.

    • 24.00 mm (0.94 in) — 9” displays.

  3. Jigsaw.

  4. Half-round file (or sandpaper).

  5. Marine-grade sealant.

  6. (1) 4 mm Hex wrench (Allen key).

  7. Masking / self-adhesive tape.

Note

(1) This item is only required for removing the trunnion adaptor when mounting an Axiom 2 7" display.
