Tools required (flush mount installations)

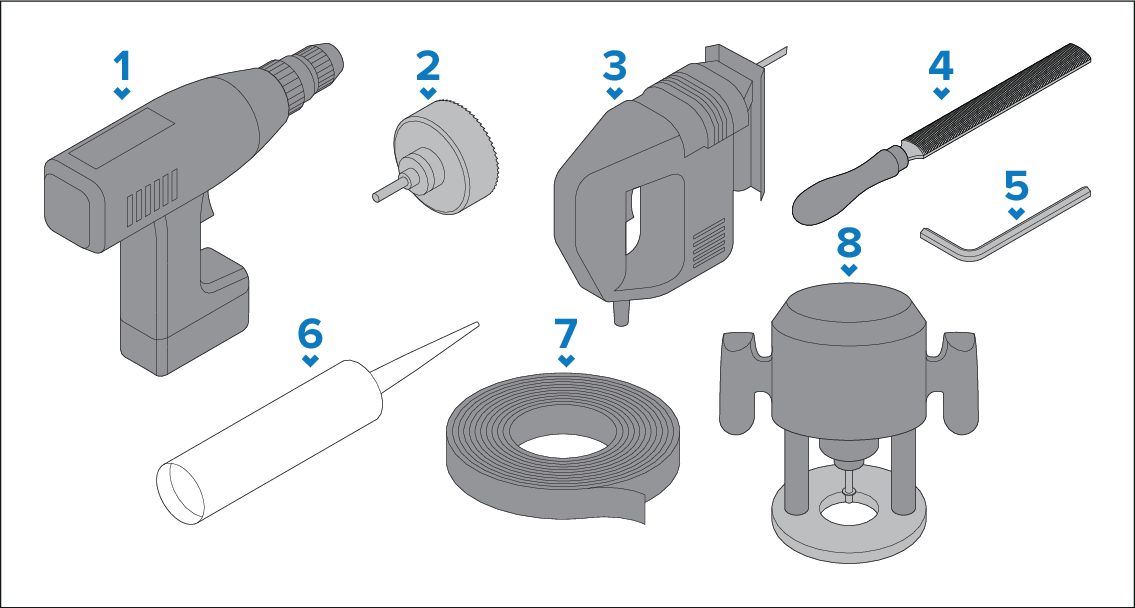

The following tools are recommended for flush mount installations:

InstallationFlush mountingTools requiredMountingFlush mountingTools requiredTools required Flush mounting

  1. Power drill.

  2. Hole cutter (appropriate size for corner diameters of the Cut-out line identified on the supplied mounting template):

    • 20.00 mm (0.79 in) — 7” and 12” displays.

    • 24.00 mm (0.94 in) — 9” displays.

  3. Jigsaw.

  4. Half-round file (or sandpaper).

  5. (1) 4 mm Hex wrench (Allen key).

  6. Marine-grade sealant.

  7. Masking / self adhesive tape.

  8. Hand router with a router bit of an appropriate size for the 13.00 mm (0.51 in) corner diameter required for the flush mount rebate.

Note

(1) This item is only required to remove the trunnion adaptor when mounting an Axiom 2 7" display.
