Product overview

Axiom 2 is a range of touchscreen glass bridge-style multifunction displays / chartplotters.

Axiom 2 features include:

• Full range of navigation, sonar, radar, data, entertainment and other apps available, via the embedded LightHouse operating system.

• Extensive electronic chart compatibility, including LightHouse Charts Gen 2, Navionics®, C-MAP®, Imray, and more.

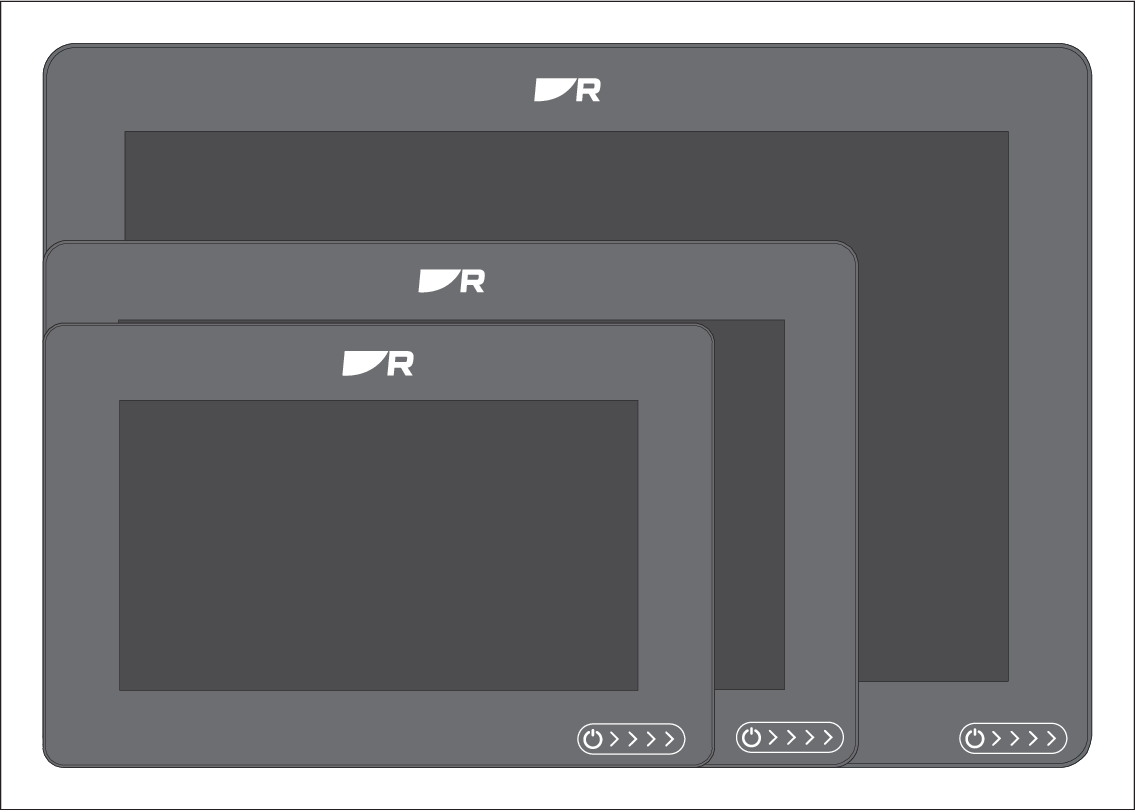

• Available in 7, 9 and 12 inch screen sizes.

• Hexacore (6-core) processor.

• 64 Gbyte internal solid state storage.

• High brightness (up to 1800 nits) multi-point touchscreen display, with the following screen resolution:

  • Axiom 2 7": 1024 x 600 (WSVGA)

  • Axiom 2 9": 1280 x 720 (HD)

  • Axiom 2 12": 1280 x 800 (WXGA)

• Wide viewing angles.

• Hydrotough nano-coated, impact-resistant glass screen, which repels water, oil, and smudges for better viewing and accurate touch controls.

• Wireless digital audio output (via Bluetooth connection to external third-party Bluetooth speaker / sound system).

• RV (3D) display variants include an internal RealVision 3D sonar module and a 600W CHIRP sonar module, which can be connected directly to compatible transducers via the 25-pin transducer connector on the rear of the display.

• RayNet (Ethernet) connection, which supports 10/100/1,000 Mbits/s data transfer speeds.

• NMEA 2000 DeviceNet connection (or SeaTalk NG via the supplied adaptor cable).

• NMEA 0183 connection available, via an optional NMEA 0183 to NMEA 2000 converter (part number: A80721).

• Built-in high-performance GNSS receiver, with fast 10 Hz position updates.

• Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support.

• MicroSD card reader.

• Micro-USB connection, for use with an optional Remote Card Reader (RCR) accessory.

• Waterproof to IPx6 (suitable for above or below decks installation).
