CCU — power connection

The power for the Camera Conversion Unit (CCU) is provided directly by a 12 V dc or 24 V dc power source, via the supplied power cable.

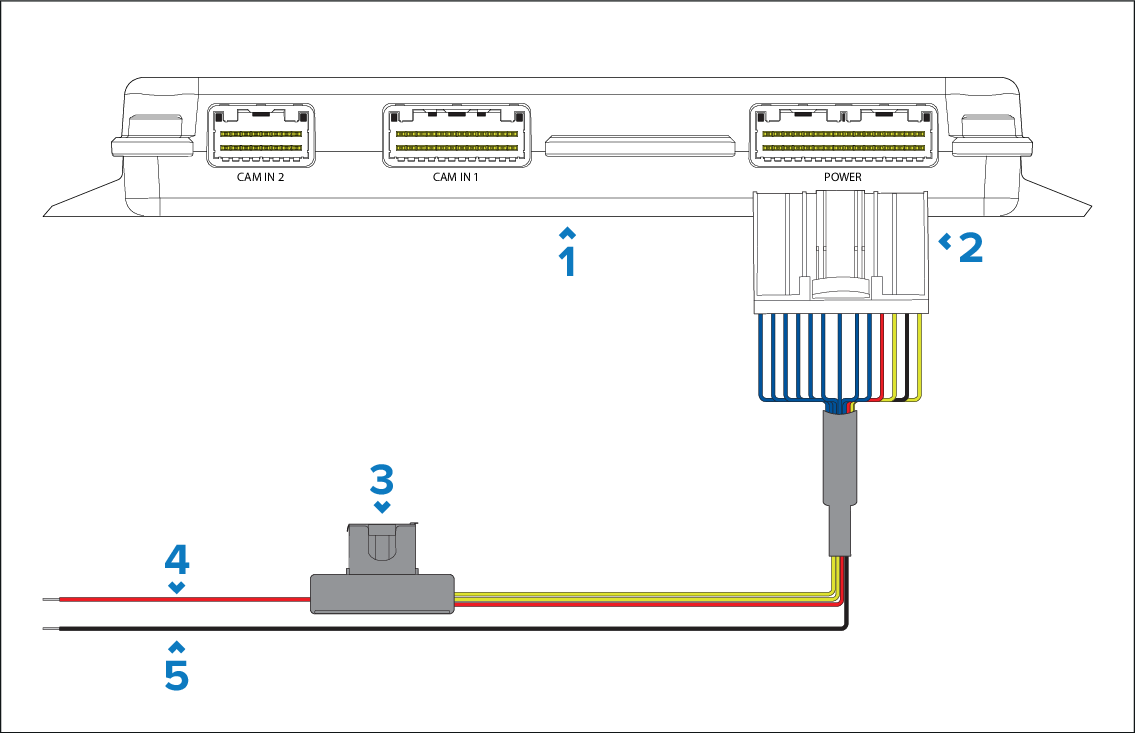

PowerConnectionsConnectionsPowerCCUPower

  1. Camera Conversion Unit (CCU).

  2. Power cable, 1 m (3.3 ft), supplied.

  3. Waterproof fuse holder containing a suitably-rated inline fuse, which must be fitted to the red positive wire — refer to the fuse ratings provided.

  4. Red wire (positive) — connects to the power supply’s positive terminal.

  5. Black wire (negative) — connects to the power supply’s negative terminal.
