SVM camera — power connection

The power for each SVM camera is provided directly by the connected Camera Conversion Unit (CCU).

PowerConnectionsConnectionsPowerConnectionsCamera

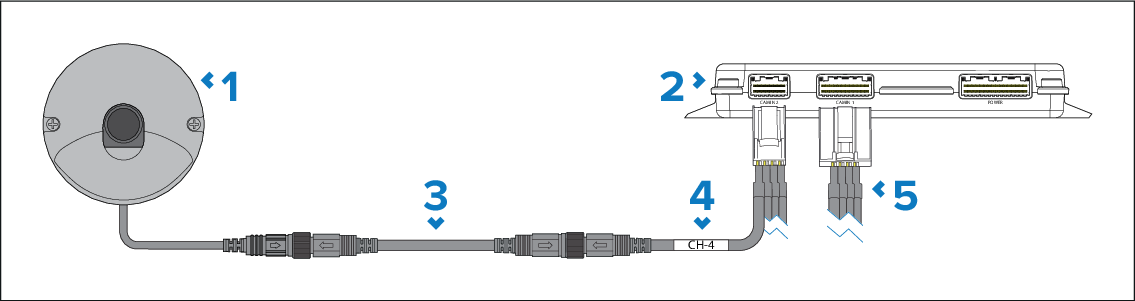

The SVM cameras are supplied with a pre-fitted 500 mm (19.69 in) cable, which can be connected to a CCU via the following cable connections:

  1. SVM camera (includes pre-fitted cable, 500 mm (19.69 in)).

  2. Camera Conversion Unit (CCU).

  3. SVM camera to CCU extension cable, 15 m (49.21 ft) supplied / 20 m (65.62 ft) available separately.

  4. CCU camera input cable 2 (used to connect SVM cameras 4-5 to the CCU), 200 mm (7.87 in).

  5. CCU camera input cable 1 (used to connect SVM cameras 0-3 to the CCU), 200 mm (7.87 in).

Note

Each camera must be connected to a specific CCU input cable channel, according to the installation location. For more information on which input channel corresponds to each camera location, refer to the following section: SVM camera — input channels
