ORU — power connection

The power for the Object Recognition Unit (ORU) is provided directly by a 12 V dc or 24 V dc power source, via the supplied power cable.

PowerConnectionsConnectionsPowerPowerORUORUPower

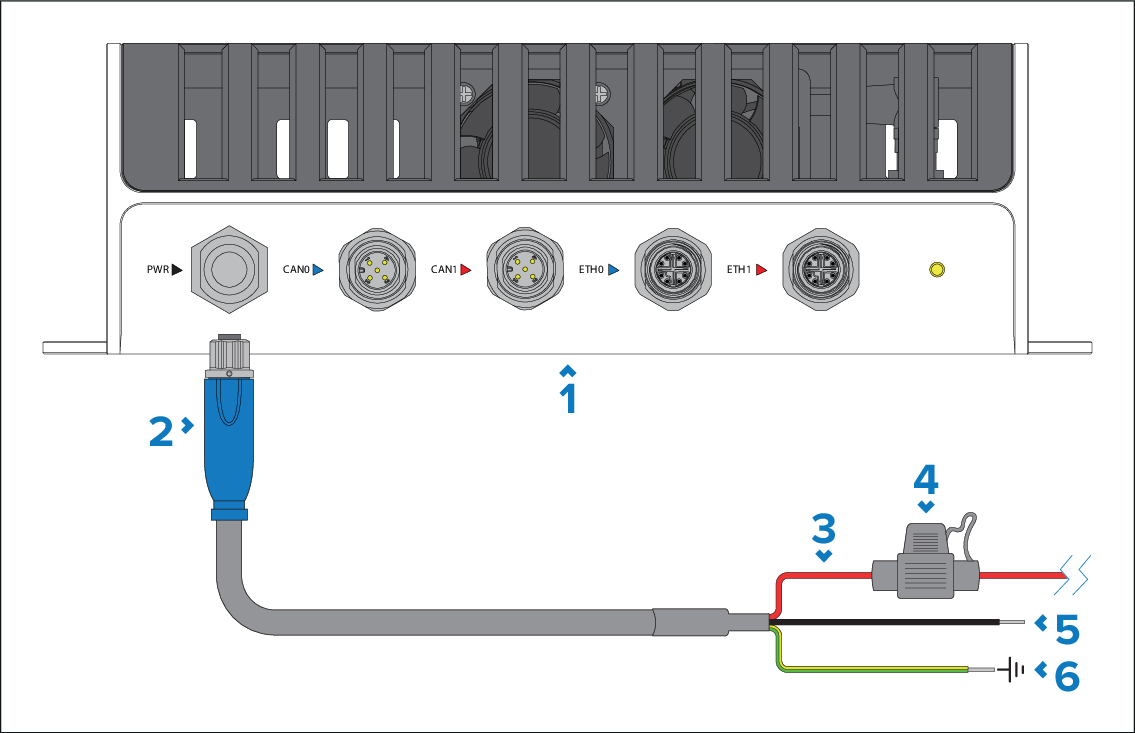

  1. Object Recognition Unit (ORU).

  2. Power cable, 2 m (6.56 ft), supplied.

  3. Red wire (positive) — connects to the power supply’s positive terminal.

  4. Waterproof fuse holder containing a suitably-rated inline fuse, which must be fitted to the red positive wire — refer to the fuse ratings below.

  5. Black wire (negative) — connects to the power supply’s negative terminal.

  6. Ground wire — connects to the vessel RF ground point (if available), or the negative battery terminal.
