Transducer accessories
The following Raymarine speed transducers can be used in conjunction with the wind transducer to output accurate sailing wind and back-calculated Apparent Wind data.

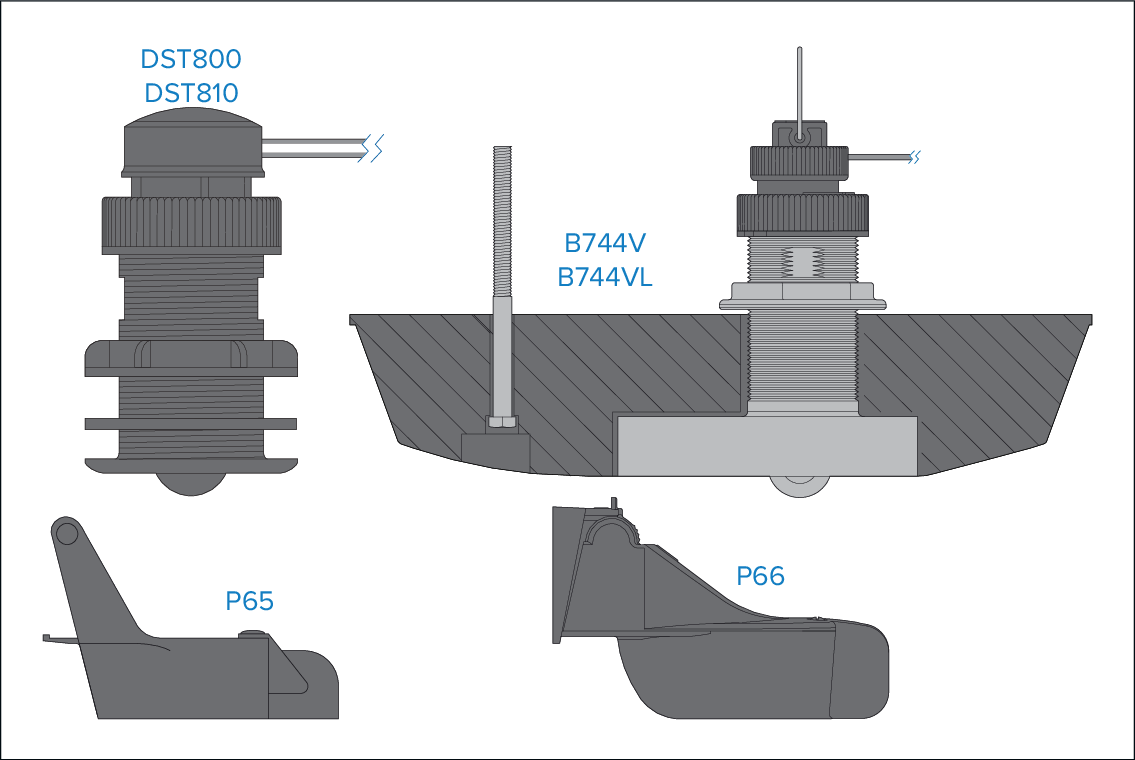

Depth, Speed and Temperature (DST) transducers:
AccessoriesAccessoriesDST transducers
Part AccessoriesTransducer |
Description |
|---|---|
E70617 / E70667 |
DST810-0° Thru-Hull |
A22146 |
DST800 Bronze Thru-Hull |
A80375 / A22154 |
DST800 Plastic Thru-Hull (replaces A22111) |
A26043 |
B744V (including fairing block) Thru-hull |
A26044 |
B744VL (including fairing block) Thru-hull |
E26028-PZ |
P66 Transom mount |
E26006-PZ |
P65 / ST40 Transom mount |

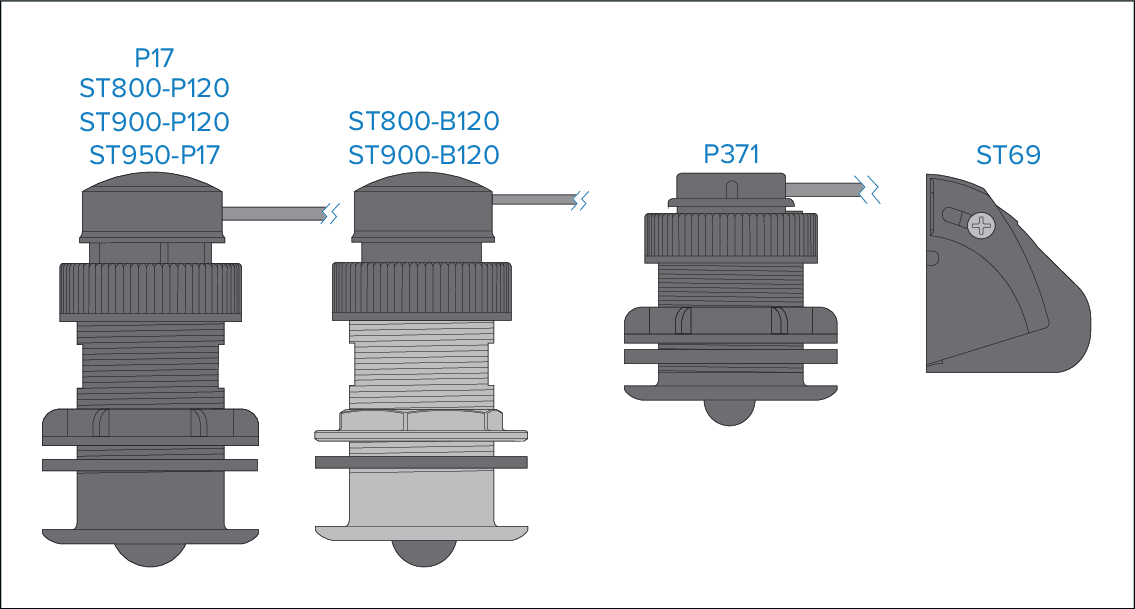

Speed and Temperature transducers:
AccessoriesAccessoriesSpeed and Temperature transducers
Part AccessoriesTransducer |
Description |
|---|---|
E25025 |
P17 Thru-hull |
E26031 |
ST800-P120 Thru-hull. |
E70673 |
ST900-P120 Thru-hull, with 13.7 m (44.95 ft) fitted cable. |
E70674 |
ST900-P120 Thru-hull, with 20 m (65.62 ft) fitted cable. |
E66072 |
ST800-B120 Thru-hull. |
E70686 |
ST900-B120 Thru-hull, with 13.7 m (44.95 ft) fitted cable. |
E70687 |
ST950-P17 Thru-hull, with 6 m (19.69 ft) fitted cable. |
E26008 |
P371 Thru-hull. |
E26005 |
ST69 Transom mount. |
