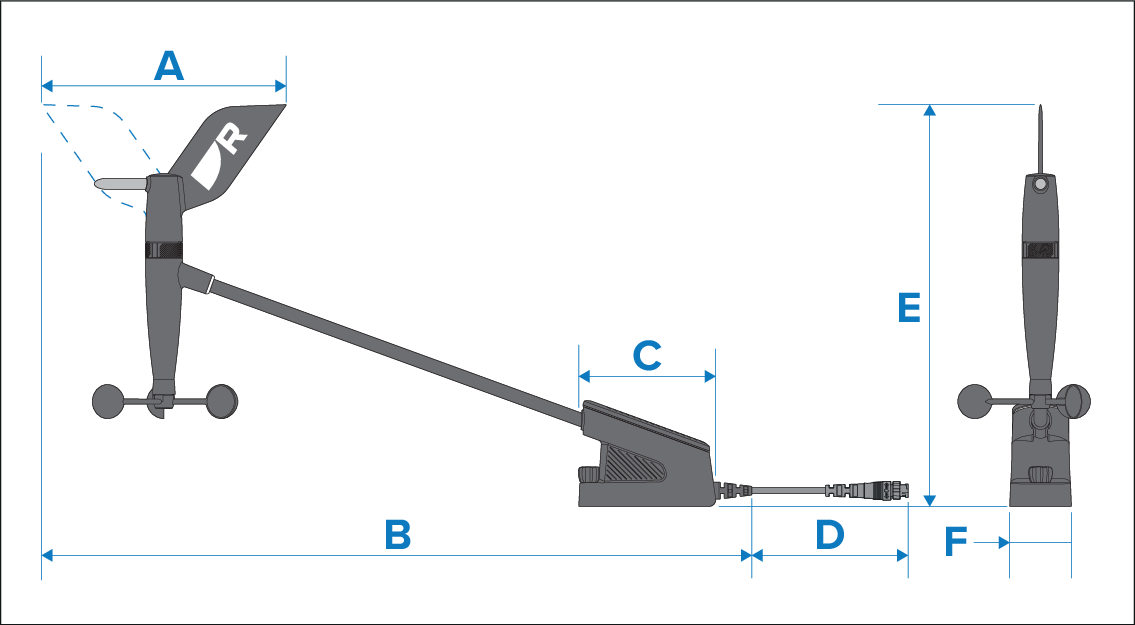

Product dimensions — Wind transducer
Product dimensionsWind transducerDimensions Wind transducer
Description |
Description |
||
|---|---|---|---|
A |
186.22 mm (7.33 in) |
B |
540.71 mm (21.29 in) |
C |
104.26 mm (4.10 in) |
D |
118.50 mm (4.67 in) |
E |
305.86 mm (12.04 in) |
F |
46.96 mm (1.85 in) |
Cable length
The wind transducer is supplied with a 30 m (98.43 ft) mast cable. For longer cable runs, a 50 m (160.76 ft) mast cable is also available separately (part number: R70945).
