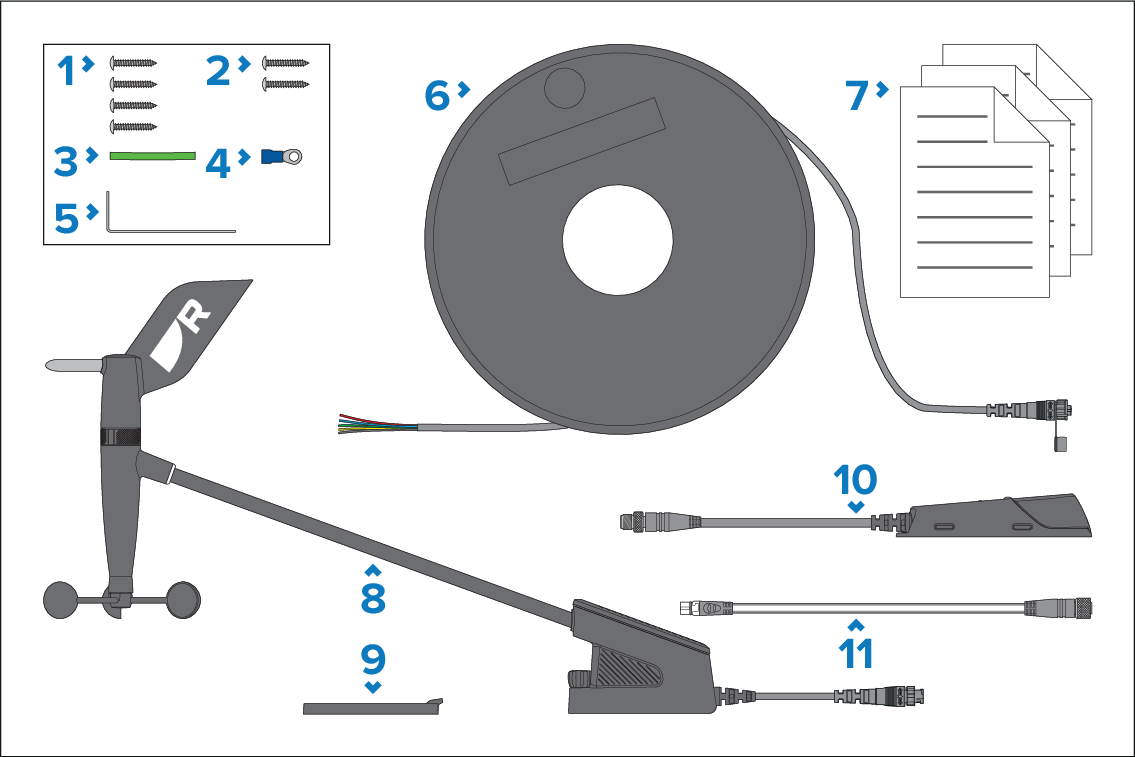

Parts supplied

1

No.10 x 3/4" self tapping screws x 4 (for mounting the wind transducer).

2

No.7 x 3/4" self tapping screws x 2 (for mounting the gateway).

3

40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable).

4

Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface which is already grounded).

5

Hex wrench (Allen key), 3 mm (0.04 in).

6

Mast cable, 30 m (98.43 ft) reel.

7

Documentation pack.

8

RSW-Wired Smart Wind transducer.

9

Mounting plate.

10

NMEA 2000 Wired gateway.

11

SeaTalk NG to DeviceNet adaptor cable, 120 mm (4.72 in).
