Connections overview

The wind transducer connects to the SeaTalk NG / NMEA 2000 network using the supplied adaptor cable and gateway.

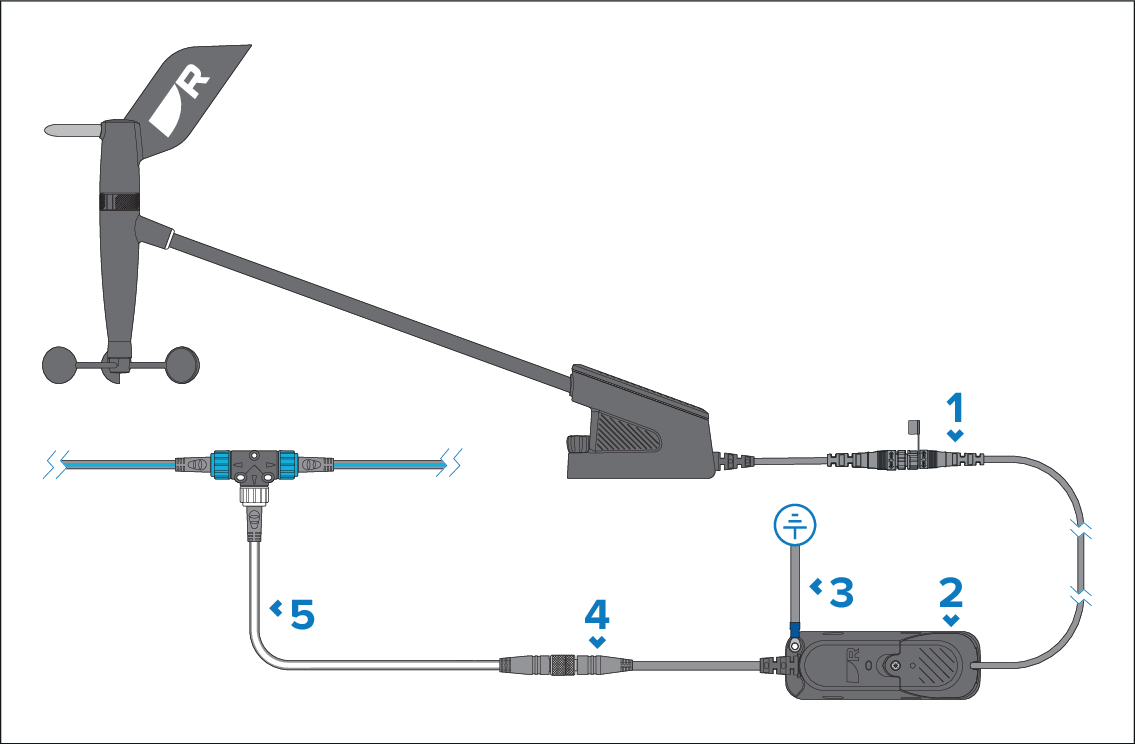

Connections overview

1. Wind transducer connection — The wind transducer connects to the supplied mast cable.

2. Gateway connection — The wires on the end of the mast cable connect to the matching colored terminals on the gateway.

3. Gateway ground connection — The top fixing hole on the gateway connects to the supplied ring crimp terminal to create a ground connection. For more information, refer to: Gateway ground connection

4. Gateway DeviceNet connection — The DeviceNet connector can connect to the supplied SeaTalk NG to DeviceNet adaptor cable, or directly to a DeviceNet spur connection.

5. SeaTalk NG connection — The supplied SeaTalk NG to DeviceNet adaptor cable is used to connect the wind transducer system to an available spur connection on the SeaTalk NG network.
