Suppression ferrite installation procedure

Follow the steps listed below to fit the supplied suppression ferrites to both your 8-pin power cable’s red (positive) and black (negative) wires.

1. Feed the suppression ferrite approximately halfway down the length of the red (positive) power cable wire.

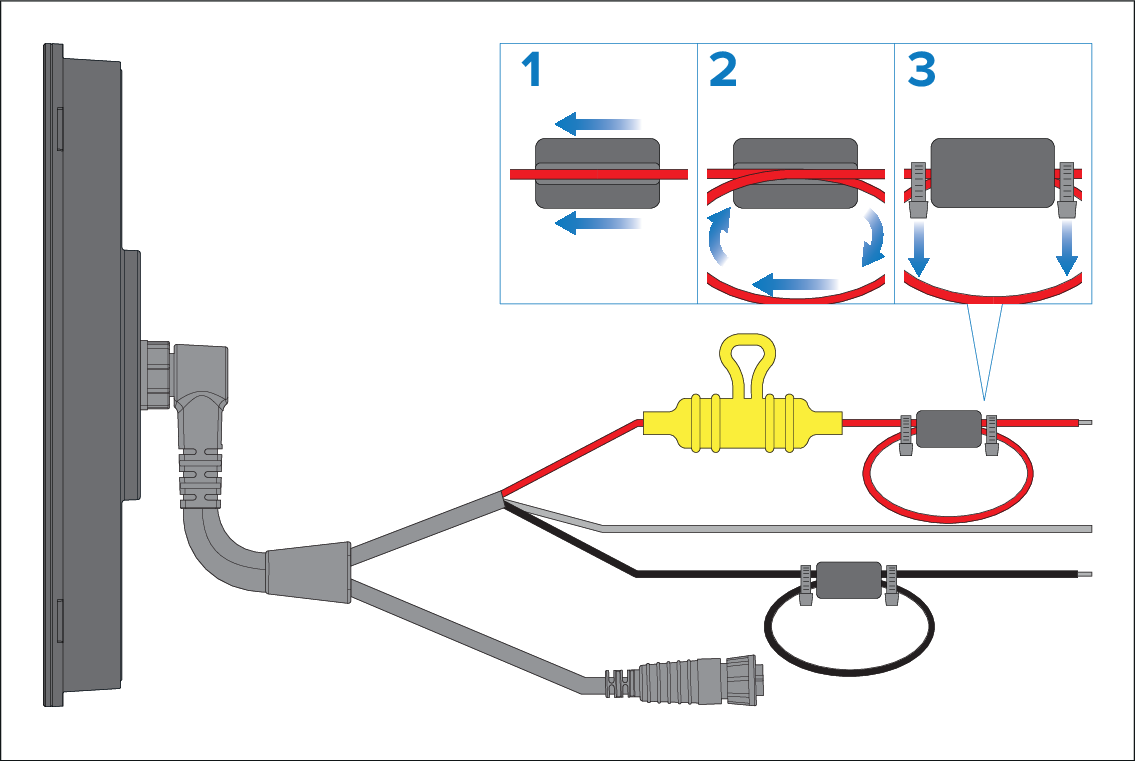

2. Wrap the red (positive) power cable wire around the outside of the suppression ferrite, and then feed the wire back through the ferrite so that a loop is formed (as shown in the above illustration).
3. Secure the suppression ferrite in place using cable ties (not supplied), directly at both ends.
4. Cut off any excess from the cable ties.

Repeat steps 1–4 for the power cable’s black (negative) wire.
