Required MFD connection
In order to function, your performance display must be networked to a compatible multifunction display / chartplotter via a separately available 8-pin right-angled power to RayNet and bare end power wires cable.
ConnectionsNetwork connectionsMultifunction display connectionNetwork connections

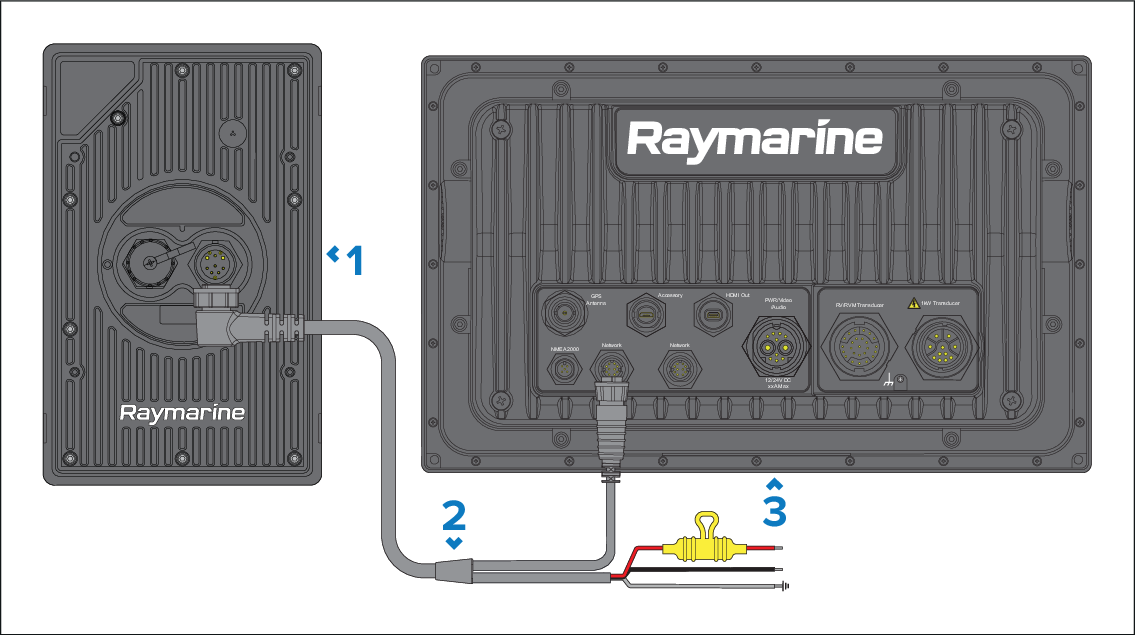

Example: RayNet cable connection scenario
Alpha Series performance display.
8-pin right-angled power to RayNet and bare end power wires cable, available separately.
Compatible Raymarine® multifunction display / chartplotter (Axiom 2 Pro illustrated).
For a list of compatible multifunction displays / chartplotters, refer to: Multifunction display (MFD) requirement
For information on the available cables and accessories, refer to the following section: Spares and accessories
