Product overview

Alpha is a high brightness and high contrast sunlight-viewable touchscreen performance display, optimized for sailing applications.

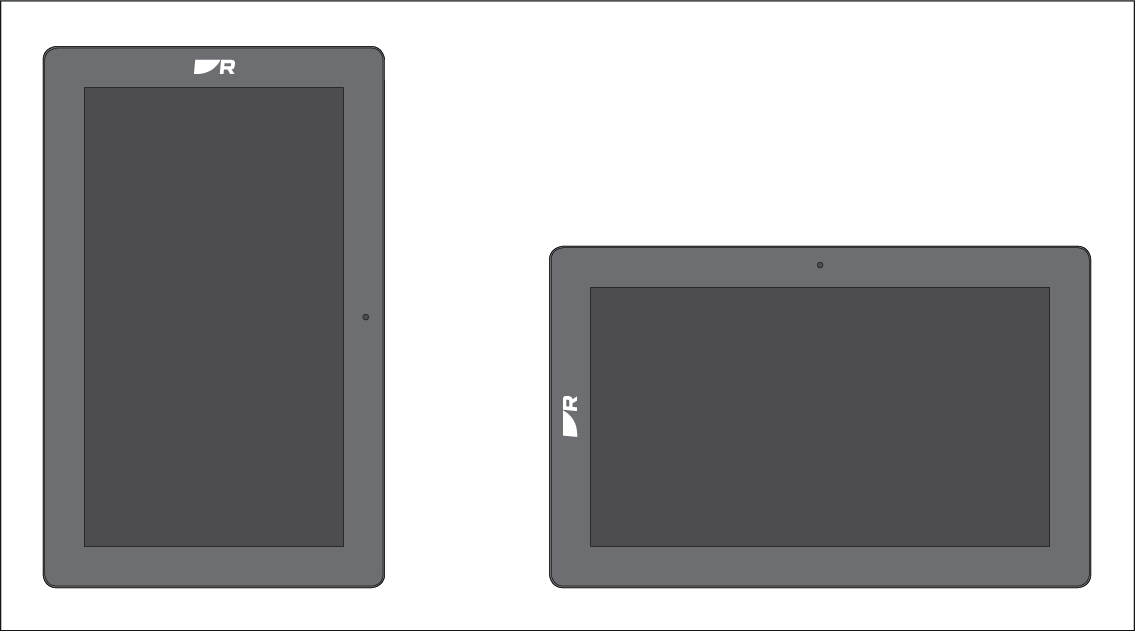

Available in 2 different screen sizes, the Alpha Series displays can be mounted in portrait or landscape configurations, and in conjunction with Raymarine® Axiom™ multifunction displays / chartplotters and compatible sensors, show key environmental, navigational and vessel data in a fully-customizable format.

With the ability to be daisy-chained in groups of up to 4 displays for simplified mast and deck cabling, Alpha displays are ideal for providing vital performance data at the optimum locations on your vessel.

Product overviewThe performance display has the following key features:

  • 7” (Alpha 7 performance display ) (E70649) or 9” (Alpha 9 performance display ) (E70650) polarized sunglasses-friendly high brightness and high contrast anti-glare IPS display, with wide viewing angles and accurate touch controls.

  • Hydrotough™ display technology with nano-coated, impact-resistant glass repels water, oil, and smudges.

  • Ambient light sensor for automatic display brightness adjustment.

  • Maximum installation flexibility with flush, surface, or mast mounting options in portrait or landscape orientation. Single or dual display mast brackets available as optional accessories.

  • Retro-fit mounting option — fits the mounting hole of an existing Raymarine® instrument, such as ST60, ST60+, i50, i60, i70, or i70s.

  • Simplified cabling — a robust single waterproof cable carries both power and data (available separately, in a range of lengths).

  • Up to 4 Alpha displays can be connected together in a “daisy chain”, for expanded systems.

  • Fully customizable data pages and widgets for the following categories: Battery, Boat, Depth, Distance, Engine, Environment, Fuel, GPS, Generators, Heading, Inside environments, Navigation, Pilot, Speed, Time, Water tanks and Wind.

  • Lockable touchscreen display, with remotely-controllable brightness and data page selection via a connected (and required) Raymarine® Axiom™ multifunction display / chartplotter.

  • Waterproof to IPx6 and IPx7 (suitable for above or below decks installation).

  • 12 / 24 V dc operation.

  • Low power consumption:

    • (Alpha 7 performance display) — 10.10 W (maximum) @ 12 V dc / 12.34 W (maximum) @ 24 V dc

    • (Alpha 9 performance display) — 12.27 W (maximum) @ 12 V dc / 12.51 W (maximum) @ 24 V dc
