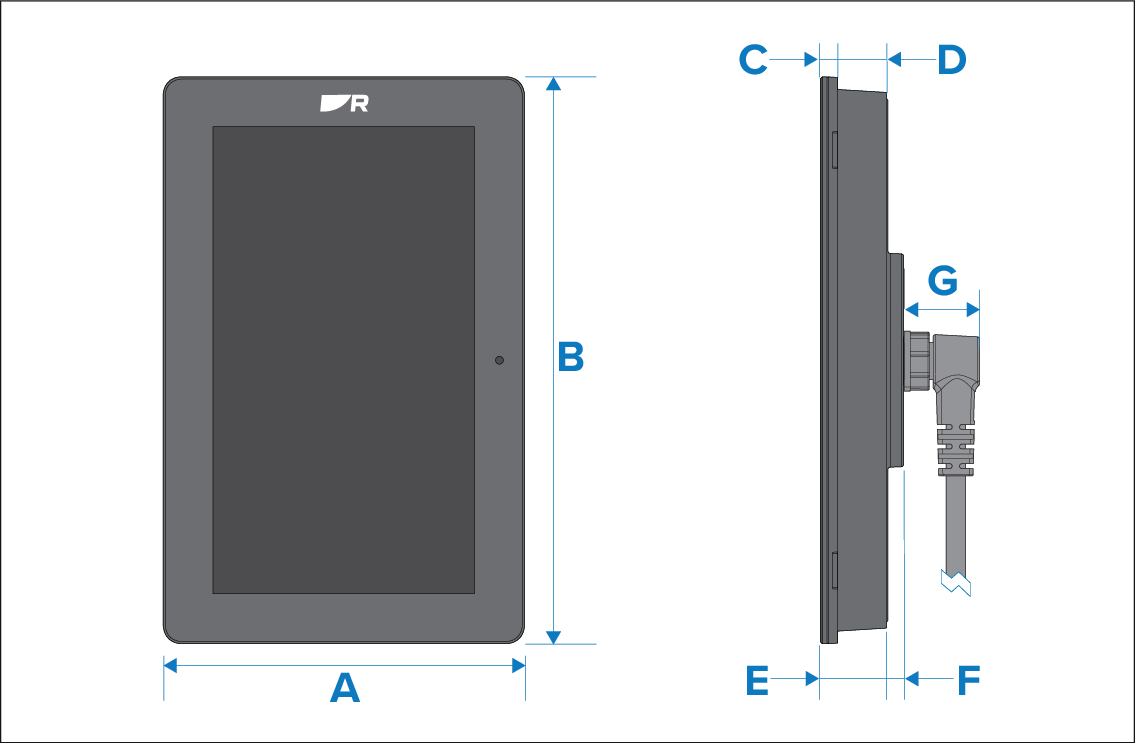

Product dimensions
DimensionsProduct dimensionsSpecificationProduct dimensions
Alpha 7 |
Alpha 9 |
|
|---|---|---|
A |
120.1 mm (4.73 in) |
148.9 mm (5.86 in) |
B |
188.4 mm (7.42 in) |
235.9 mm (9.29 in) |
C |
7 mm (0.28 in) |
7 mm (0.28 in) |
D |
18 mm (0.71 in) |
20.5 mm (0.81 in) |
E |
25 mm (0.98 in) |
27.5 mm (1.08 in) |
F |
7 mm (0.28 in) |
7 mm (0.28 in) |
G |
30.9 mm (1.22 in) |
30.9 mm (1.22 in) |
