Connections overview

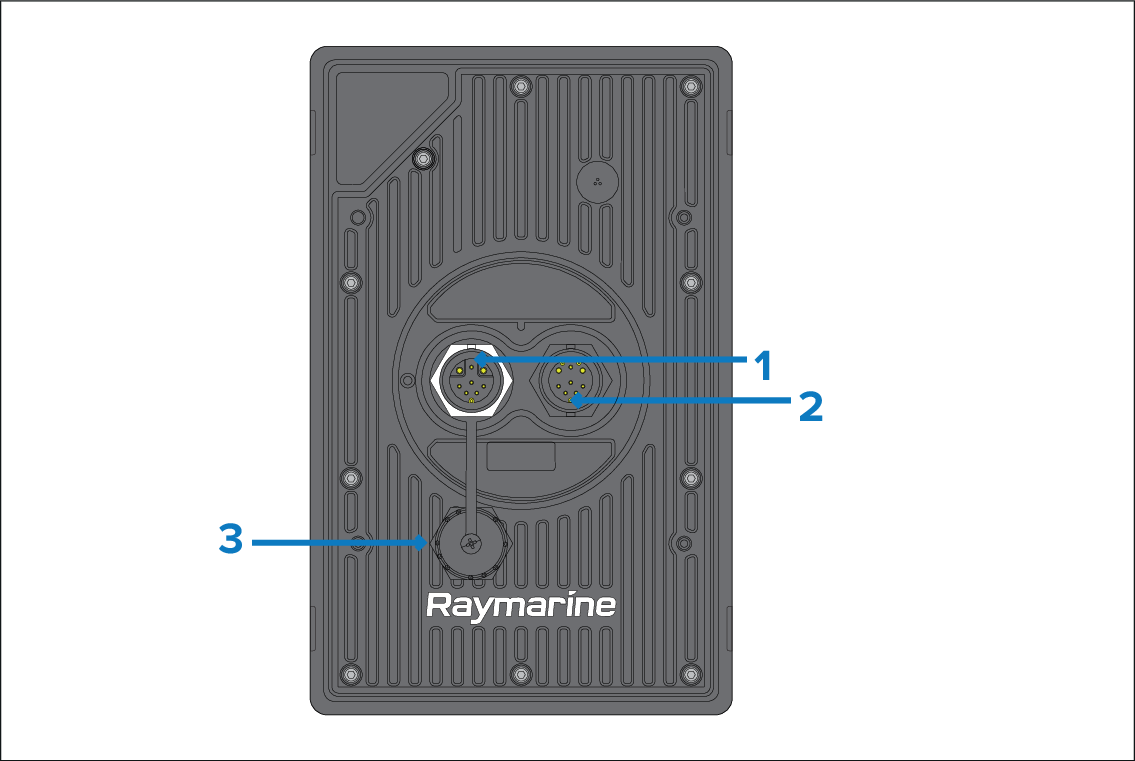

The Alpha Series performance display includes the following connections:

ConnectionsOverview

Note

The performance display is supplied with a protective cap fitted to the Daisy-chain connection port.

The protective cap should remain in place until connections are made. If a connection is not required then the protective cap should not be removed.

  1. Daisy-chain connector (Port 1 — white ).

  2. Power / RayNet (Ethernet) connector (Port 2 — black ).

  3. Protective cap — only remove if daisy-chaining Alpha Series displays.
