Power cable requirement

Your performance display requires a separately available combined RayNet and power cable in order to function, which is NOT supplied with the product.

Parts suppliedCable requirementCable requirement

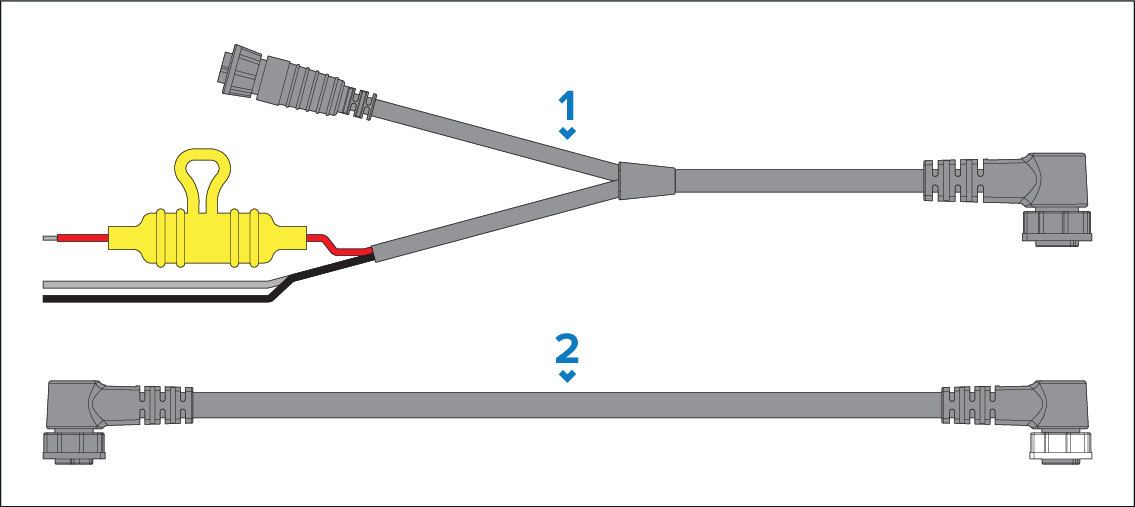

Depending on your system configuration, either one or both of the following cables will be required:

  1. 8–pin right angled power to RayNet and bare end power wires cable, available separately — used to supply power to the performance display directly from a 12 V or 24 V power source.

  2. 8–pin right angled daisy chain cable, available separately — used to supply power and data to additional performance displays connected (or “daisy-chained”) in a series.
