RNS-8 port identification

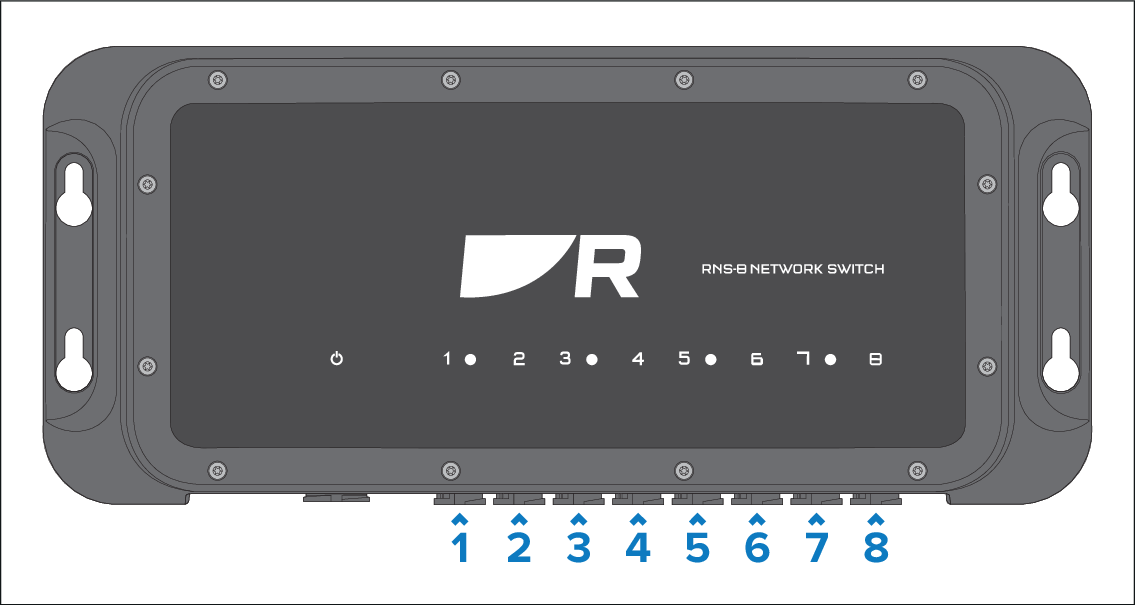

Before attempting to view your network switch’s port diagnostic information, it is vital to know the associated port number for each port.

  1. Port 1 — PoE (Classes 0 to 4), (30 W maximum) RayNet Ethernet network connection port (10 / 100 / 1000 Mbits/s).

  2. Port 2 — Non-PoE RayNet network connection port (10/100/1000 Mbits/s)

  3. Port 3 — PoE (Classes 0 to 4), (30 W maximum) RayNet Ethernet network connection port (10 / 100 / 1000 Mbits/s).

  4. Port 4 — Non-PoE RayNet network connection port (10/100/1000 Mbits/s)

  5. Port 5 — PoE (Classes 0 to 4), (30 W maximum) RayNet Ethernet network connection port (10 / 100 / 1000 Mbits/s).

  6. Port 6 — Non-PoE RayNet network connection port (10/100/1000 Mbits/s)

  7. Port 7 — PoE (Classes 0 to 4), (30 W maximum) RayNet Ethernet network connection port (10 / 100 / 1000 Mbits/s).

  8. Port 8 — Non-PoE RayNet network connection port (10/100/1000 Mbits/s)

Note

For product and port diagnostic information, refer to: RNS-8 Diagnostic information
