Power over Ethernet (PoE) power output

PoE devices can be powered via one of the RNS-8’s PoE ports, located on the bottom connector row on the rear of the unit. PoE ports can be easily identified via their red locking nuts.

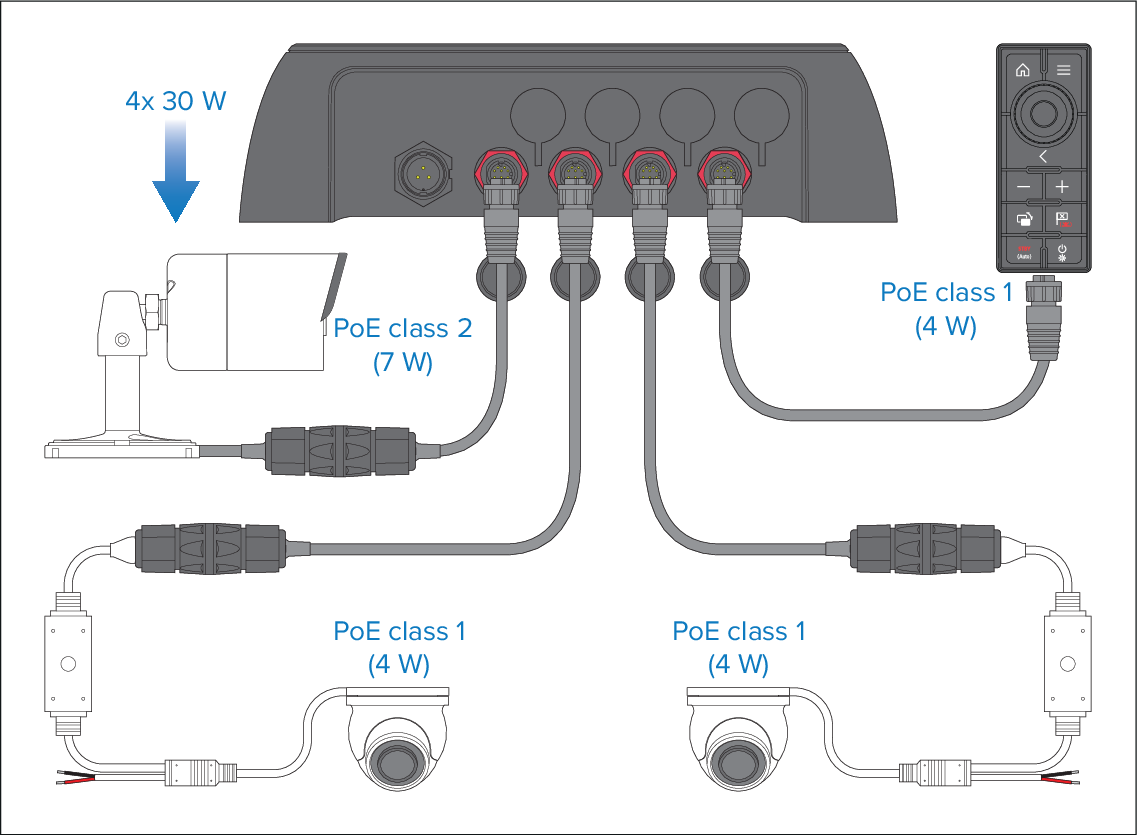

ConnectionsPoEPoE connectionIn the example below, the power requirements of each of the 3 PoE devices do not exceed the 30 W maximum power provided by each PoE port. All 3 devices can therefore be powered by the network switch, via PoE.

Figure 1. Example PoE connections

Note

  • The PoE devices should be connected using RayNet to RayNet cables or RayNet to RJ45 cables. For more information on the cabling required, refer to the documentation supplied with your PoE device.

  • Any suppression ferrites supplied with the powered device must be used on the network cable connecting the powered device to the network switch.

  • In order to sufficiently power PoE devices, the network switch’s power supply must exceed 10.8 V dc.
