Power connection
The power for the network switch is provided directly by a 12 V or 24 V dc power source.
PowerConnectionsConnectionsPower

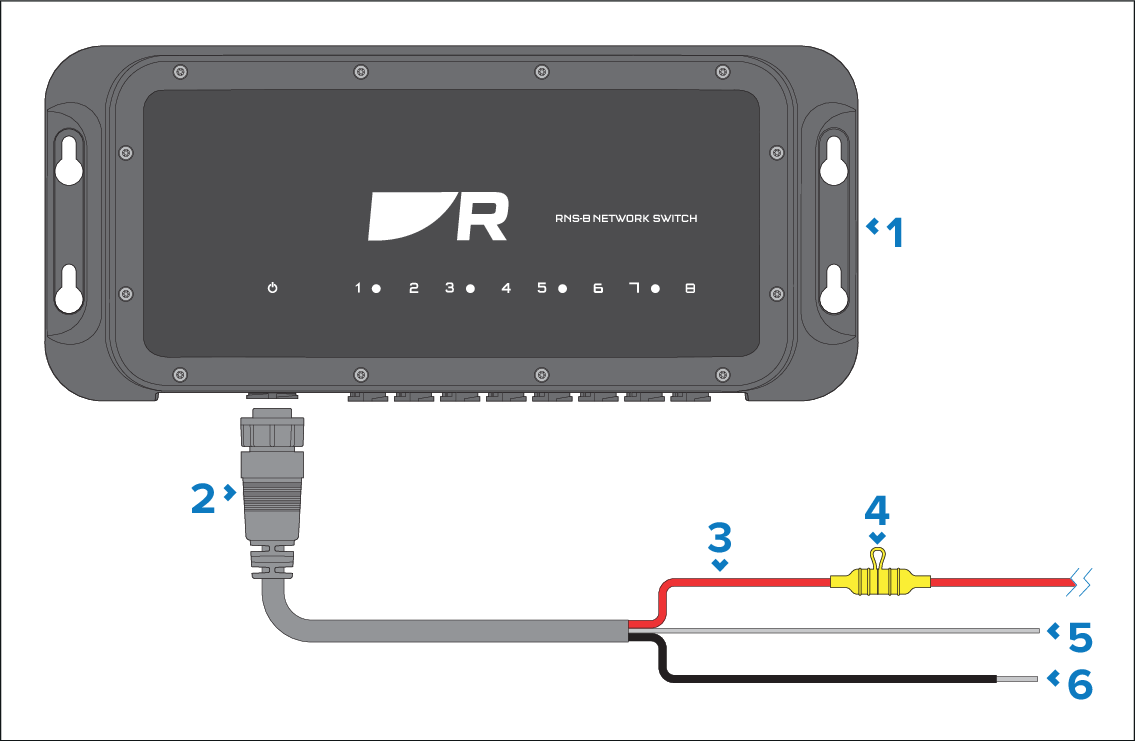

The network switch is supplied with a power cable with bare stripped wires, suitable for direct connection to a 12 V or 24 V dc power supply:
Description |
|
|---|---|
1 |
RNS-8 Network Switch. |
2 |
Power cable (supplied), 1.5 m (4.9 ft.). |
3 |
Red wire (positive) — connects to the power supply’s positive terminal. |
4 |
Waterproof fuse holder containing a suitably-rated inline fuse (not supplied), which must be fitted to the red positive wire — for fuse ratings, refer to: Inline fuse and thermal breaker ratings |
5 |
Gray wire (drain) — connects to the vessel’s RF ground (if available), or the negative battery terminal. |
6 |
Black wire (negative) — connects to the power supply’s negative terminal. |
