Mounting the unit
Instructions for mounting the unit.
Before mounting the product, ensure that you have:
Selected a suitable location, based on the location requirements found in this document.
Identified the relevant cable connections and the route that the cables will take.
- Prepare the mounting surface:
- Fix the supplied mounting template to the chosen location, using masking or self-adhesive tape.
- Drill mounting holes as indicated on the template to accept the fixings.
- Remove the mounting template.

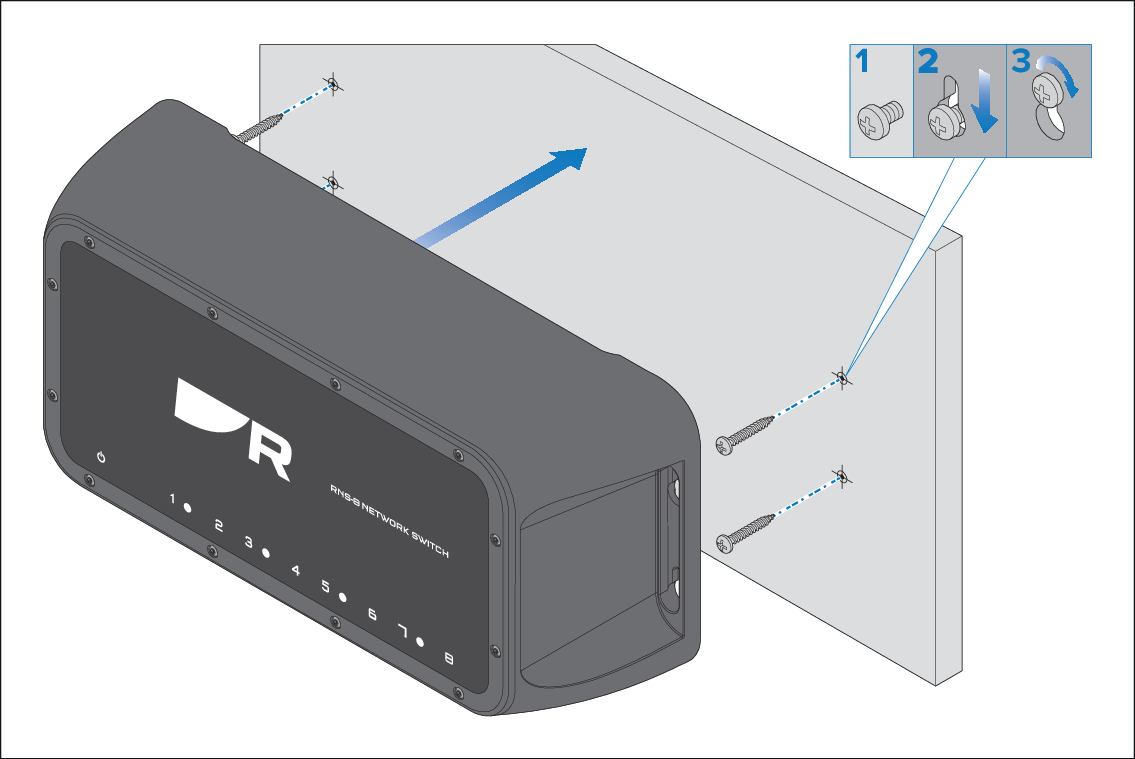

- Screw the fixings approximately half way into the holes in the mounting surface.
- Place the unit over the fixing screws and push the unit downwards to engage the keyhole slots.
- Fully tighten the screws.
