Touch control input connection

You can view and control the display from a connected high definition touchscreen monitor by connecting the monitor to the HDMI OUT and TOUCH CONTROL IN connectors located on the rear of the display using the .HDMI cable accessory (part number: A80219) and the USB A to USB B cable accessory (part number: A80578). The display screen can then be viewed by switching the monitor’s source to the HDMI connection you connected the cable to and controlled by using the monitor’s touchscreen.

ConnectionsHDMI outHDMI out connectionConnectionsTouch control inTouch in connectionThe standard HDMI connector and standard USB connector on the accessory cables are connected to the monitor and the other end of the cables are connected HDMI OUT and TOUCH CONTROL IN connectors.
Note

Ensure that the locking collars are used to secure the connections to the display.

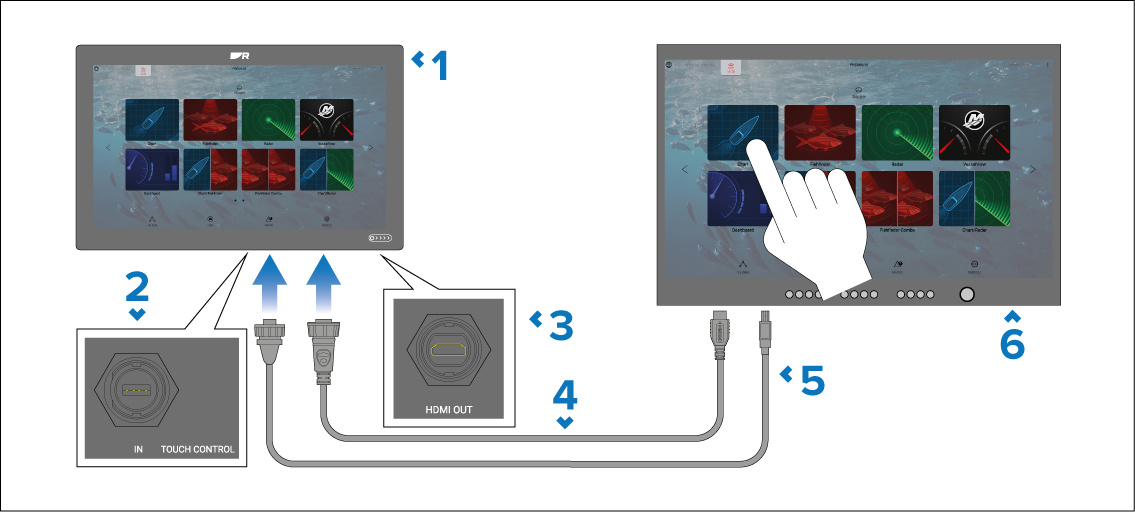

  1. Display.

  2. Display’s TOUCH CONTROL IN connector.

  3. Display’s HDMI OUT connector.

  4. HDMI cable (part number: A80219) — Not supplied.

  5. USB A to USB B cable (part number: A80578) — Not supplied.

  6. HD touchscreen display.
