Mounting the card reader

The card reader can be surface mounted following the steps below:

Note

  • 4 x appropriate size self-tapping screws (not supplied) are required to mount the card reader.

  • Drill bit and screw size are dependent upon the thickness and type of material that the card reader is being mounted on.

Mounting Card readerInstallation Card reader

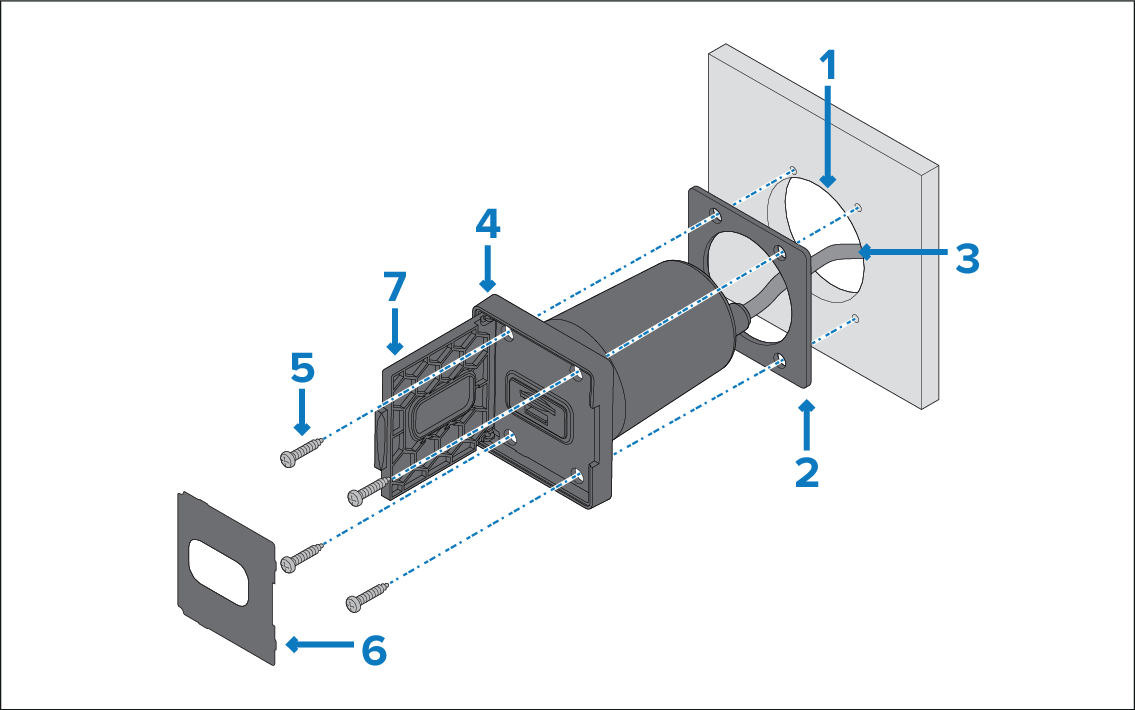

  1. Using the supplied card reader mounting template as a guide, cut and drill the cut out hole and fixing pilot holes at the relevant locations on the mounting surface.
  2. Attach the gasket to the rear of the card reader.
  3. Feed the cable through the hole and connect to the product’s Accessory connection.
  4. Insert the card reader into the cut out hole.
  5. Secure the card reader using appropriate self-tapping screws (not supplied).
  6. Insert the card reader inlay.
  7. To prevent water ingress and consequent damage to the product, ensure that the card reader door or cover is firmly closed.
