Parts supplied

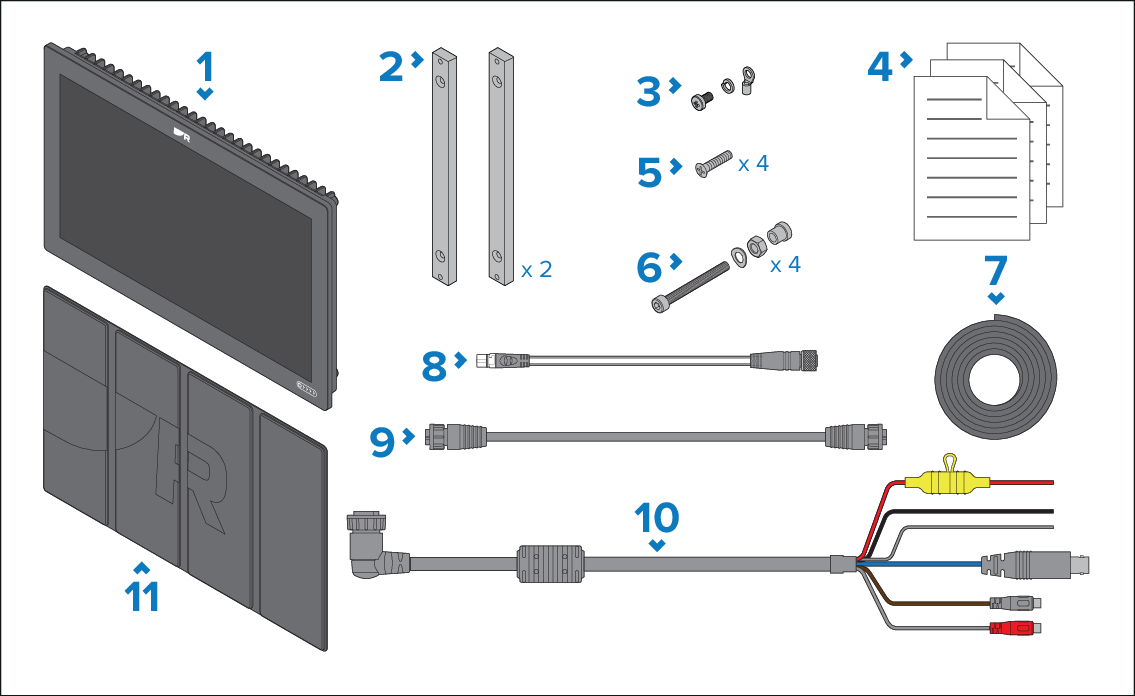

The following parts are supplied in the box.
Unpack your product carefully to prevent damage or loss of parts. Check the box contents against the list below. Retain the packaging and documentation for future reference.
| Parts suppliedBox contentsWhat’s in the box | Description |
|---|---|
1 |
Axiom 2 XL display |
2 |
Rear mount brackets |
3 |
M3 x 5 screw, M3 spring washer and M3 crimp terminal (for optional grounding connection) |
4 |
Documentation |
5 |
Mounting bar fixings x4 (M5 x 20 pozi countersunk) |
6 |
Mounting fixings x 4 (Including M5 x 35 Bolts, M5 wavy washers, M5 nuts and mounting feet) |
7 |
Mounting gasket tape |
8 |
SeaTalk NG to DeviceNet adaptor cable, 1 m (3.3 ft) |
9 |
RayNet network cable, 2 m (6.6 ft) |
10 |
Right-angled power / video / audio cable, 1.5 m (4.92 ft) |
11 |
Sun cover |
