Audio (RCA) connections

The display can output audio received from an entertainment device connected to the HDMI IN connection, or from an installed third-party APK app (such as Netflix®), by connecting the RCA AUDIO connectors on the display’s Power/audio/video cable to an audio input on an amplifier or entertainment system.

Connections AudioAudio Connections (RCA)

Note

Audio output requires an external amplifier or entertainment system.

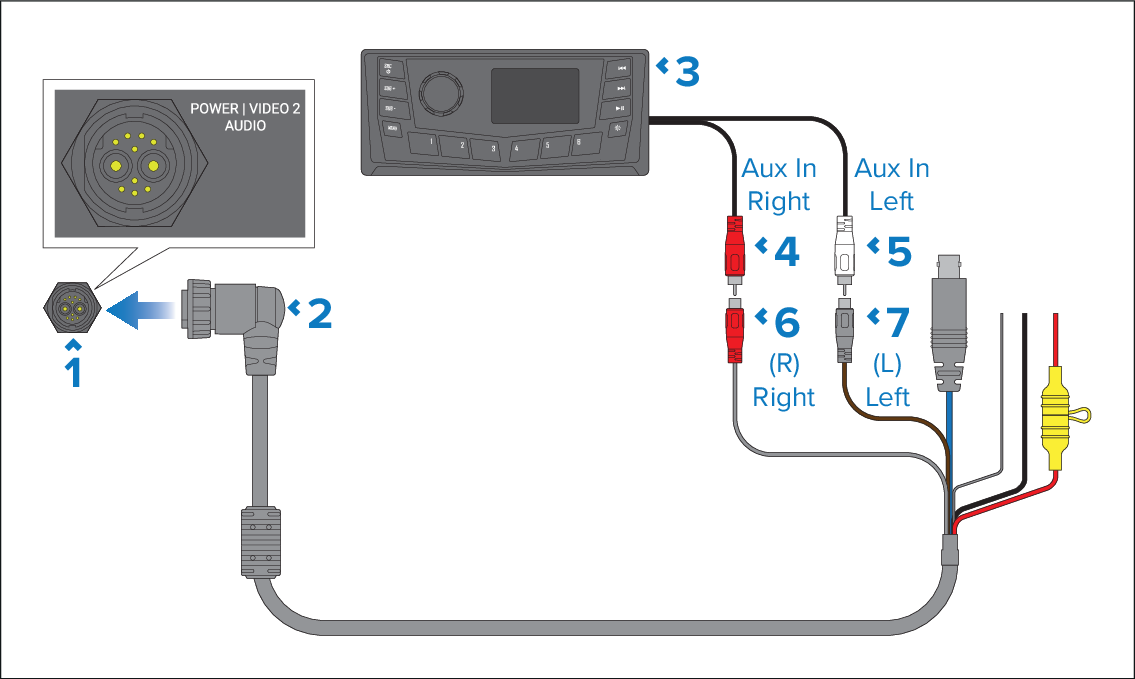

  1. POWER | VIDEO 2 | AUDIO connector.

  2. Display’s Power/video/audio cable, 1.5 m (4.9 ft).

  3. Entertainment system with built-in amplifier.

  4. Entertainment system’s Right auxiliary analog audio input (RCA; usually red male connector).

  5. Entertainment system’s Left auxiliary analog audio input (RCA; usually white or black male connector).

  6. Display’s Right channel analog audio output (red female RCA connector).

  7. Display’s Left channel analog audio output (black female RCA connector).

Note

Optionally, digital audio may be output from the display wirelessly, by connecting a Bluetooth speaker. For instructions on pairing a Bluetooth speaker, refer to the operations instructions for your display (Document number: 81406).

A Bluetooth speaker will take priority over RCA audio and HDMI out (i.e.: if all are connected, audio will only be output from the Bluetooth speaker; if only RCA and HDMI out are connected, the audio will play from both. In this scenario, to output from RCA audio / HDMI out instead, switch the Bluetooth speaker off).

Note

  • Axiom® 2 XL displays are supplied with a Power/video/audio cable that has a right-angled connector. A straight connector cable is also available (A80744).

  • The original Axiom® Power/Video/NMEA 0183 cables cannot be used with Axiom® 2 XL displays.
