Spares

The following spares are available for displays:

Rear mounting kits

  • 16” Rear mounting kit (part number: R70668)

  • 19” Rear mounting kit (part number: R70669)

  • 22” Rear mounting kit (part number: R70675)

  • 24” Rear mounting kit (part number: R70670)

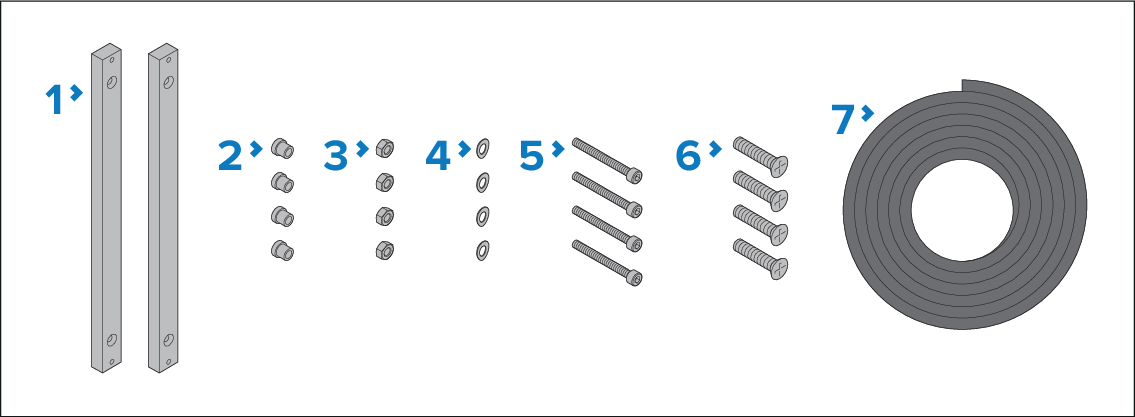

Kit contents

Spares

1

Mounting bars x 2

2

Mounting foot x 4

3

M5x40 Hex socket screw x 4

4

M5 Nut x 4

5

M5 Wavy washer x 4

6

M5x20 machine screw x 4

7

Panel mount gasket

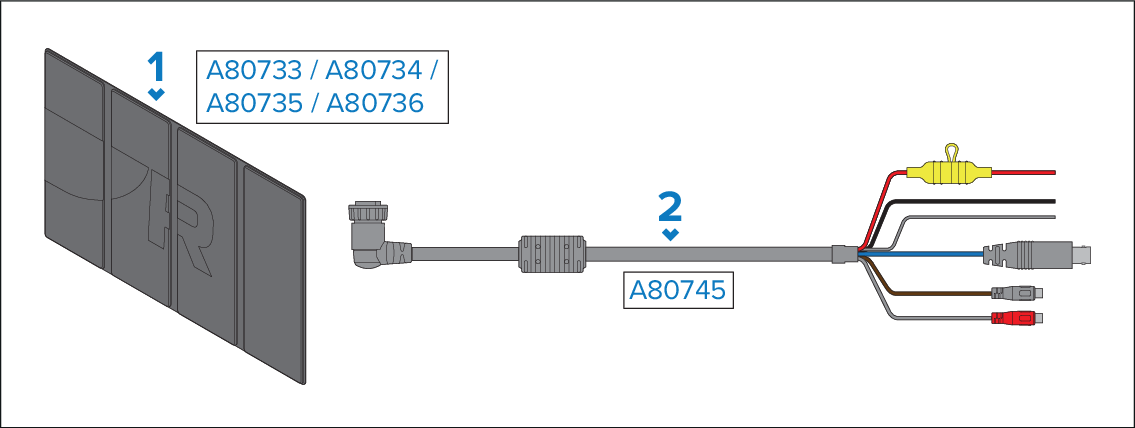

Other spares

Description

Spares

1

  • 16” sun cover (Part number: A80733)

  • 19” sun cover (Part number: A80734)

  • 22” sun cover (Part number: A80735)

  • 24” sun cover (Part number: A80736)

2

Right-angled power / video / audio cable, 1.5 m (4.92 ft) (part number: A80745).

A power / video / audio cable with a straight connector is also available: (part number: A80744).
