Axiom 2 Pro dimensions

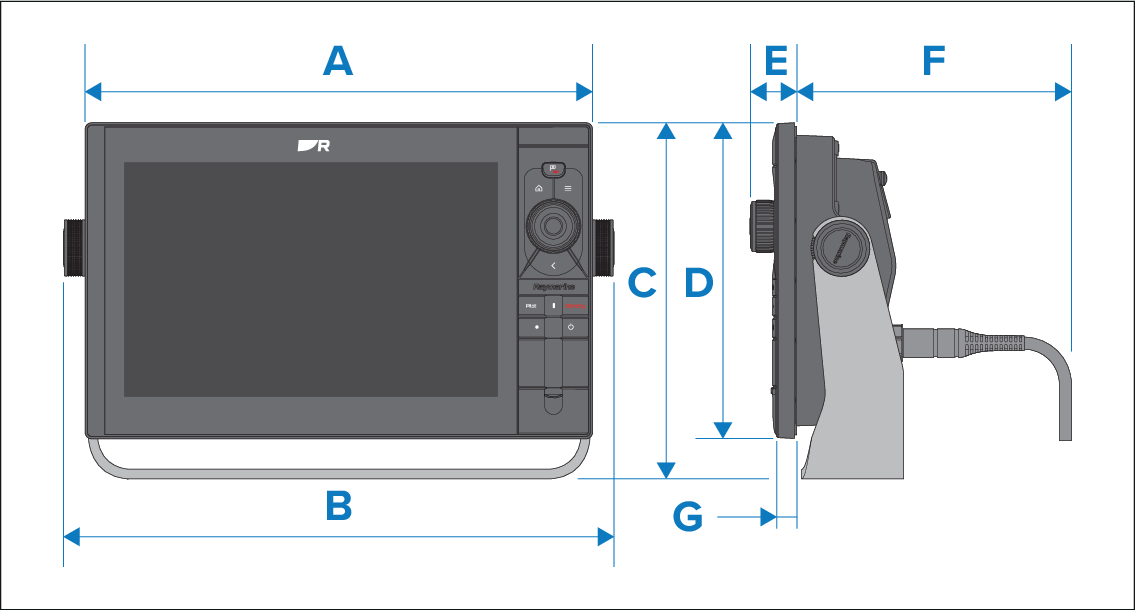

Display dimensions and cable allowances. Dimensions provided are approximations only; actual dimensions required may differ.
Product DimensionsDimensions
A trunnion bracket is included with the Axiom® 2 Pro 9 and Axiom® 2 Pro 12 displays. For the Axiom® 2 Pro 16 the trunnion bracket is a separate accessory (part number: A80722).
Axiom 2 Pro 9 |
Axiom 2 Pro 12 |
Axiom 2 Pro 16 |
|
|---|---|---|---|
A |
299.30 mm (11.78 in) |
358.10 mm (14.10 in) |
452.10 mm (17.80 in) |
B |
329.50 mm (12.97 in) |
388.50 mm (15.3 in) |
482.50 mm (19.00 in) |
C |
186.2 mm (7.33 in) |
246.10 mm 9.69 in) |
281.20 mm (11.10 in) |
D |
173.80 mm (6.84 in) |
222.80 mm (8.77 in) |
258.00 mm (10.16 in) |
E |
34.66 mm (1.36 in) |
34.66 mm (1.36 in) |
34.66 mm (1.36 in) |
F |
86.01 mm (3.39 in) to 201.40 mm (7.93 in) See ‘Dimension F’ table below for examples. |
85.86 mm 3.38 in) to 201.30 mm (7.93 in) See ‘Dimension F’ table below for examples. |
91.60 mm (3.61 in) to 208.50 mm (8.21 in) See ‘Dimension F’ table below for examples. |
G |
14.25 mm (0.56 in) |
14.25 mm (0.56 in) |
14.25 mm (0.56 in) |
Dimension F is the depth required for surface mounting the display, when allowing for the space needed by connectors and their cable bend requirements. This depth requirement is variable, based on the cable connections required and the types of cable used in the installation.
The minimum possible depth requirement reflects an installation with only a right-angled power cable connected.
The maximum depth requirement reflects an installation with a straight RealVision transducer cable connected.
Dimension F (cable bend allowances) — examples
Axiom 2 Pro 9 |
Axiom 2 Pro 12 |
Axiom 2 Pro 16 |
|
|---|---|---|---|
Straight RealVision transducer cable connected |
201.40 mm (7.93 in) |
201.30 mm (7.93 in) |
208.50 mm (8.21 in) |
Right-angled RealVision transducer cable connected |
86.01 mm (3.39 in) |
85.86 mm 3.38 in) |
91.60 mm (3.61 in) |
Axiom 25-pin to CPT-S 9-pin adaptor cable connected |
201.40 mm (7.93 in) |
201.30 mm (7.93 in) |
208.50 mm (8.21 in) |
Straight power cable connected |
169.46 mm (6.67 in) |
169.32 mm (6.67 in) |
175.06 mm (6.89 in) |
Right-angled power cable connected |
97.49 mm (3.84 in) |
97.35 mm (3.83 in) |
103.09 mm (4.06 in) |
