Surface mounting

Follow the steps below to surface mount the display.

InstallationSurface mount
Important

  • The supplied gasket provides a seal between the display and a suitably flat and rigid mounting surface or binnacle. The gasket should be used in all installations. It may also be necessary to use a marine-grade sealant if the mounting surface or binnacle is not entirely flat and/or has a rough surface finish.

  • In above decks installations, marine-grade sealant should always be used to seal the gap between the edge of the mounting surface and the edge of the display.

  • Take care not to block the breather hole with sealant. The breather hole is located on the bottom of the display, next to the product label.

  1. Ensure you have followed the instructions for preparing the mounting surface for surface mounting.
  2. Route the relevant cables to the area behind the mounting surface cutout.

    This may be difficult or not possible once the display has been mounted.

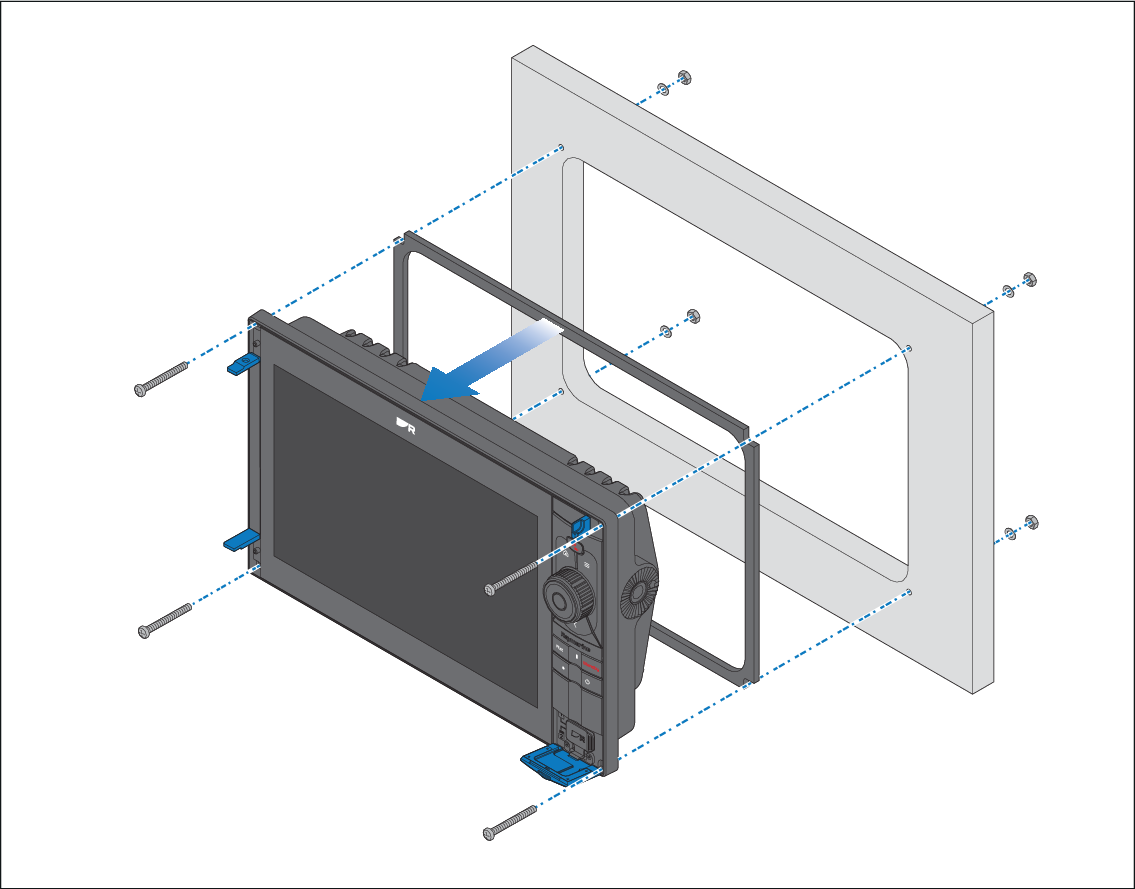

  3. Remove the backing from the supplied gasket and place the sticky side of the gasket onto the flange on the rear of the display. Then press firmly onto the flange.
  4. Connect the relevant cables to the rear of the display.
  5. Slide the display into the cutout area.
  6. Pull back the 3 corner bungs and open the card reader door.
  7. Insert the fixing bolts, attach the washers and nuts from the rear, and then tighten.
  8. Close the 3 corner bungs and the card reader door.
