Power connection

The supplied power cable is connected to the PWR/Video/Audio connector located on the rear of the display. The power cable must then be connected to a 12 V dc or 24 V dc power supply; this can be achieved by connecting to a distribution panel, or directly to a battery. The product is protected against reverse polarity.

Power connectionConnectionsPower

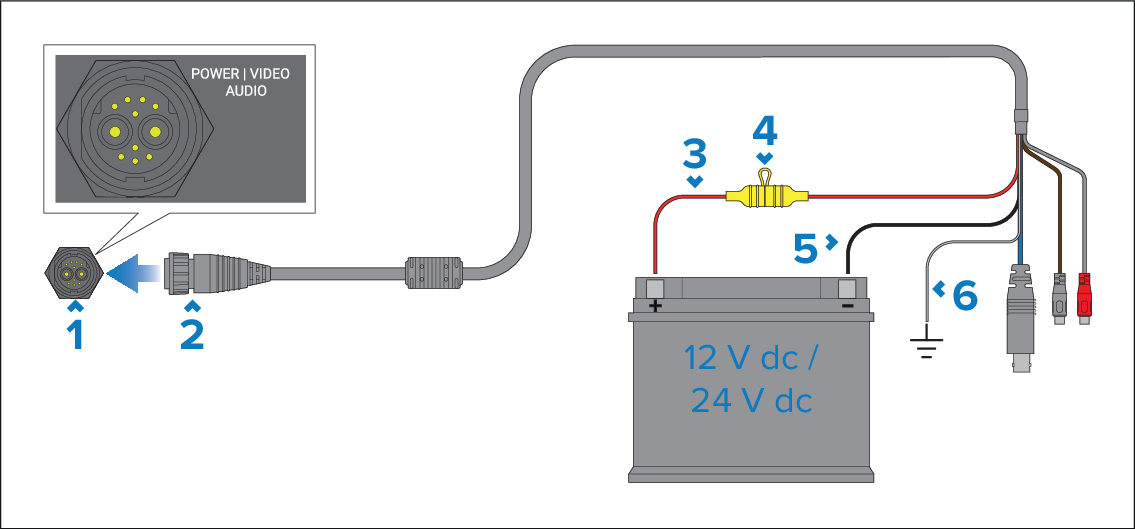

  1. Display’s PWR/Video/Audio connector.

  2. Power/video/audio cable 1.5 m (4.9 ft).

  3. Positive (Red) wire connects to the power supply’s positive (+) terminal.

  4. Fuse.

  5. Negative wire connects to the power supply’s negative (-) terminal.

  6. Drain wire connects to RF ground point, if no ground point is available connect to the battery negative (-) terminal.

Note

  • Axiom® 2 Pro displays are supplied with a Power/video/audio cable that has a straight connector. A right angled connector cable is also available (part number: A80745 ).

  • The original Axiom® Power/Video/NMEA 0183 cables cannot be used with Axiom® 2 Pro displays.
